Chief 2 in. Bore x 10 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter

Shop all Chief

5.02 Reviews

Item # 130692999

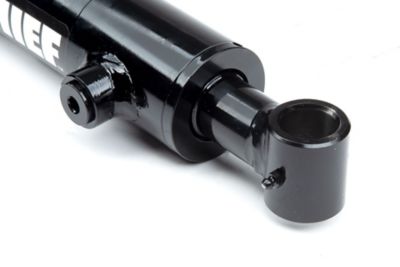

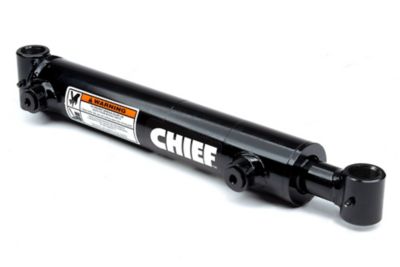

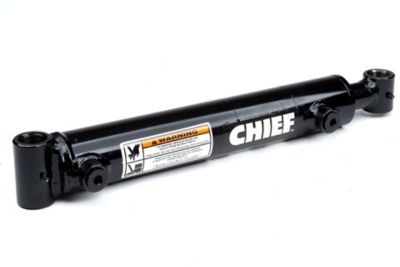

Image showing 2 in. Bore x 10 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter

$209.99

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Chief

Chief 2 in. Bore x 10 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter

5.02 Reviews

Item # 130692999

See 2 deals for this item

$209.99

$35/mo.^† suggested payments with 6 Months Financing or earn $10 in Rewards⁺ on this purchase.Apply now

This item is available online only

Delivery to

37027

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor’s Club Members earn points with purchases.

The Chief 2 in. Bore x 10 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. You can rest easy knowing this cylinder is ideally suited for construction, metal fabricating, waste/recycling, OEM trailer manufacturing, and agricultural applications.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Welded hydraulic cylinder functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range
Measures 17 in. retracted and 27 in. extended
Column load: 9,420 lb.
Pin diameter of 1 in. and rod diameter of 1.25 in.
Includes SAE O-ring port hookups on small bores and NPT on the hydraulic cylinder's large bores
Made in the USA

Brand	Chief
Country of Origin	Made in USA
Bore Diameter	2 in.
Brand Compatibility	Universal
Compatibility	Tractors
Extended Length	27 in.
Hydraulic Cylinder Type	Welded
Maximum Operating Pressure	3,000 PSI
Maximum Weight Capacity	9,420 lb.
Model Compatibility	Most applications
Package Quantity	1
Pin Diameter	1 in.
Port Size	SAE 8
Primary Material	Steel
Product Height	2.63 in.
Product Length	0 N/A
Product Weight	13.67 lb.
Product Width	0 N/A
Retracted Length	17 in.
Rod Diameter	1-1/4 in.
Single/Double Acting	Double acting
Stroke Distance	10 in.
Warranty	3 Year Limited
Manufacturer Part Number	212677
