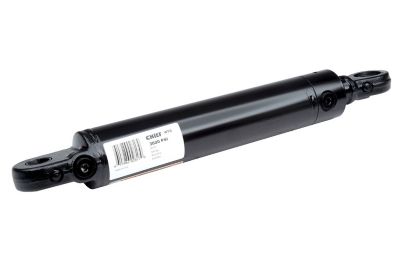

Chief 2 in. Bore x 20 in. Stroke WTG Welded Tang Hydraulic Cylinder, 1.125 in. Rod Diameter
Item # 130783299
Neighbor’s Club Members earn points with purchases.
Item # 130783299
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Chief 2 in. Bore x 20 in. Stroke WTG Welded Tang Hydraulic Cylinder is sometimes referred to as a lug end cylinder, due to its 1-piece lug mount welded to both the rod and base ends. This welded cylinder can utilize a spherical ball or steel bushing insert to improve wear life. A hydraulic cylinder like this one will be most commonly used in heavy-duty construction equipment.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended for use as a double acting hydraulic cylinder
- Piston: ductile iron, thread-on with wear ring
- Gland: keyed joint, ductile iron
- Tube made from durable precision-honed steel
- Rod is induction-hardened and hard chrome-plated for corrosion resistance
- Rod end mount: cast 1045 steel, welded-on
- Spherical bearing with retaining ring
- 1/8 NPT grease zerk
- Base end mount: cast 1045 steel, hardened spring steel bushing, 1/8 NPT grease zerk
- Tube seal: Buna O-ring with polytemp hytrel backup
- Rod seal: deep polypak with B-lip design
- Rod wiper: urethane, snap-in
- Piston seals: Hallite 755 for prolonged wear resistance, with wear ring
- All seals are manufactured to U.S. specifications
- Ports: SAE O-ring
- Paint: black; custom colors are available
- 3,600 PSI pressure rating
- Forged steel tang mountings with integral heavy-duty bushings
- 360 degree rotating gland for versatility
- Welded hydraulic cylinder is functionally tested and pressurized to 5,000 PSI to ensure performance reliability
- 3-year limited warranty
- Measures 30 in. retracted and 50 in. extended
- Column load: 7,170 lb.
- Pin diameter of 1 in. and rod diameter of 1.125 in.
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Varies |
| Extended Length | 50 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,600 PSI |
| Maximum Weight Capacity | 7,170 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 1.2 in. |
| Product Length | 10 in. |
| Product Weight | 14 lb. |
| Product Width | 1.3 in. |
| Retracted Length | 30 in. |
| Rod Diameter | 1-1/8 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 20 in. |
| Warranty | 3 Year |
| Manufacturer Part Number | 400617 |
Q: What is the length with the cylinder retracted?
7 years ago- A: The retracted length of part 400617 is 30 inches, extended length is 50 inches.7 years agoHelpful?
Q&As
Q: What is the length with the cylinder retracted?
7 years ago- A: The retracted length of part 400617 is 30 inches, extended length is 50 inches.7 years agoHelpful?
