Chief 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

4.8

(5 Reviews)

|

Item # 130745599

$249.99

Chief 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

4.85 Reviews

Item # 130745599

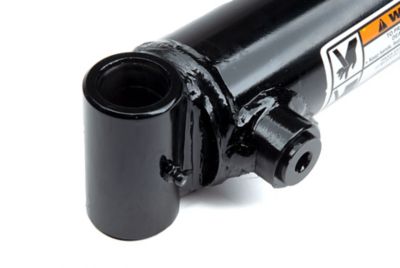

Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

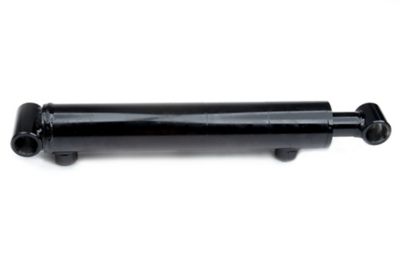

Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

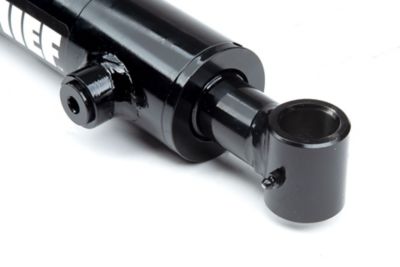

Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

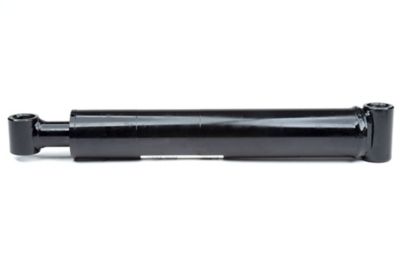

Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
$249.99

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

4.85 Reviews

Item # 130745599

Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
$249.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2.5 in. Bore x 16 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends are welded cross-tubes with grease zerks for smooth and consistent performance. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end, making this cylinder ideally suited for construction and agricultural applications as well as other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

  • Intended for double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube made from durable, precision-honed steel
  • Rod is made from ground and polished chromed steel with a minimum 75,000 PSI yield
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range
  • Includes SAE O-ring port hookups on small bores and NPT on large bores
  • Measures 24 in. retracted and 40 in. extended
  • Column load: 14,722 lb.
  • Pin diameter of 0.75 in. and rod diameter of 1.25 in.
  • 3 year limited warranty on welded hydraulic cylinder for added value
