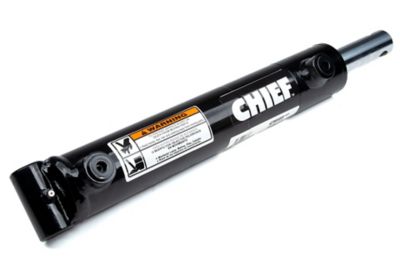

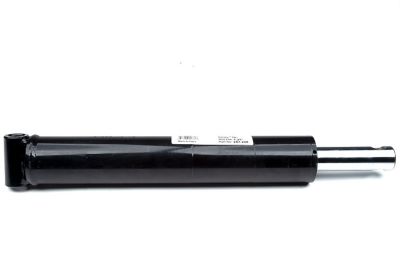

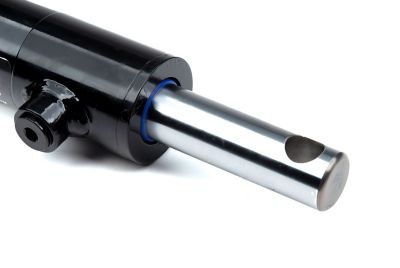

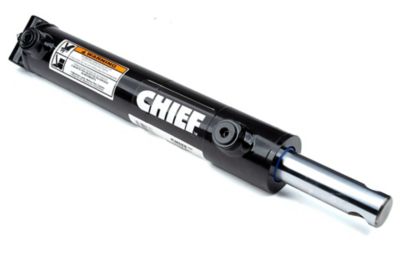

Chief 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214

4.84 Reviews

Item # 130765199

Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
$229.99

See 2 deals for this item

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214

4.84 Reviews

Item # 130765199

Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
Image showing 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter, 287214
$229.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2 in. Bore x 24 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and means the cylinder is ideally suited for construction and agricultural applications. It will perform well as in farming applications, as well as in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the welded hydraulic cylinder
  • Measures 32 in. retracted and 56 in. extended
  • SAE O-ring ports for efficiency
  • Black paint finish
  • Suitable for a variety of applications
  • Made in USA
  • Column load: 8,180 lb.
  • Pin diameter of 0.75 in. and rod diameter of 1.25 in.
  • 3 year limited warranty
