Chief 2.5 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

4.65 Reviews

Item # 130743899

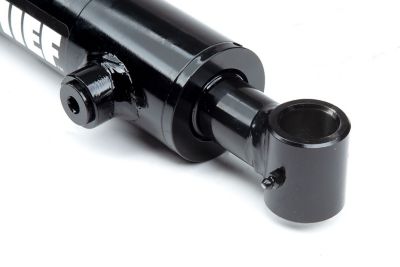

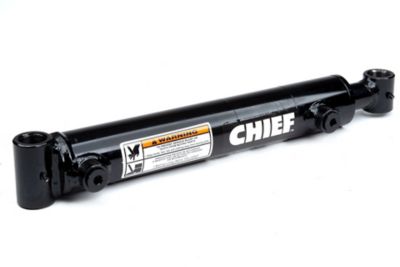

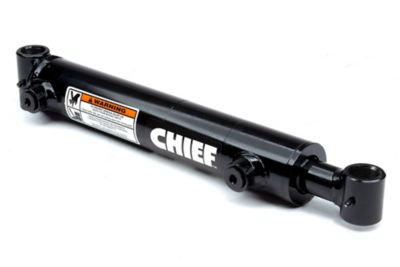

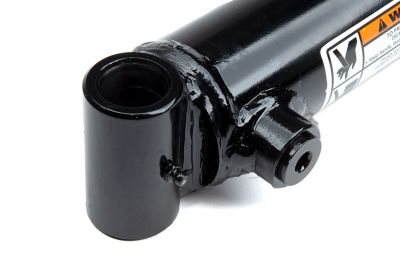

Image showing 2.5 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

$229^.99

See 2 deals for this item

Neighbor’s Club Members earn points with purchases.

Shop all Chief

Chief 2.5 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

4.65 Reviews

Item # 130743899

$229^.99

See 2 deals for this item

This item is available online only

Delivering to

37027

Neighbor’s Club Members earn points with purchases.

The Chief 2.5 in. Bore x 14 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and makes this welded cylinder ideally suited for construction and agricultural applications. It even has the versatility to be used in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing!Note: This product may require up to 2 additional days for order processing prior to shipping

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Intended use: double-acting applications
Piston: ductile iron with wear ring(s)
Gland: ductile iron, screw-in design with wear ring
Tube: precision-honed steel
Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
Butt plate: steel
End mounts: steel cross-tubes with grease zerk
Spacer tube: steel on 48 in. stroke and above
Gland seal: polyurethane U-cup
Wiper: polyurethane
Piston seal: 755 Hallite with wear ring(s)
All other seals are selected and designed for maximum life
Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
3,000 PSI operating range on the welded hydraulic cylinder
Measures 22 in. retracted and 36 in. extended
SAE O-ring ports
Black paint finish
Suitable for a variety of applications
Made in the USA
Column load: 14,722 lb.
Pin diameter of 1 in. and rod diameter of 1.5 in.
3 year limited warranty
