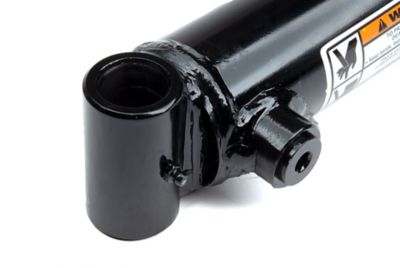

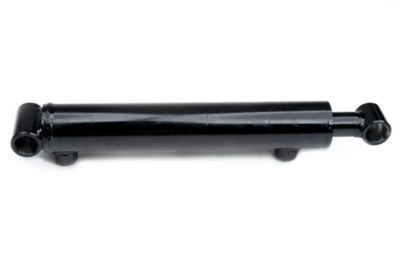

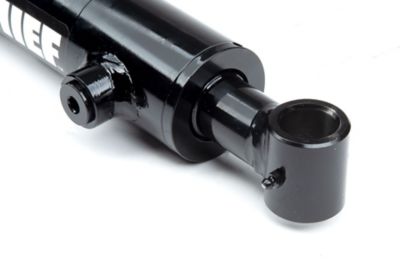

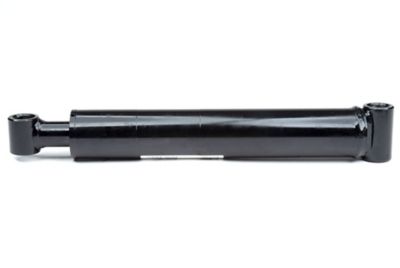

Chief 2.5 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter, 212725

Shop all Chief
Chief 2.5 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter, 212725

Item # 1307456

$299.99
Chief 2.5 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder, 1.5 in. Rod Diameter, 212725

Item # 1307456

$299.99

The Chief 2.5 in. Bore x 36 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. Designed for performance, the hydraulic cylinder has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction. The screw-in gland is removable from the rod end and makes this welded cylinder ideally suited for construction and agricultural applications. It even has the versatility to be used in other industries like metal fabricating, waste/recycling and OEM trailer manufacturing!Note: This product may require up to 2 additional days for order processing prior to shipping

  • Intended use: double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel with a minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals are selected and designed for maximum life
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • 3,000 PSI operating range on the welded hydraulic cylinder
  • Hydraulic cylinder is functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
  • SAE O-ring ports for efficiency
  • Black paint finish
  • Suitable for a variety of applications and make great farm hydraulic cylinders
  • Made in the USA
  • Column load: 14,722 lb.
  • 3 year limited warranty
  • Pin diameter of 0.75 in. and rod diameter of 1.5 in.
