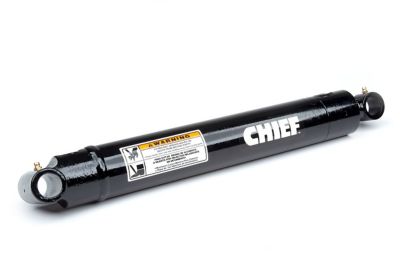

The Chief 2 in. Bore x 8 in. Stroke WX Welded Hydraulic Cylinder is ideal for applications where port adjustability and overall hydraulic cylinder space is restricted. An adjustable 360 degree rotating gland allows you to make port alignments as needed. One of the welded hydraulic cylinder's ports is located on the rotating gland and two on the fixed base. Adjustments are made by using a spanner wrench to rotate the gland with port in a clockwise or counterclockwise direction.
Specification | Description |
---|---|
Brand | Chief |
Country of Origin | Imported |
Bore Diameter | 2 in. |
Brand Compatibility | Universal |
Compatibility | Tractors |
Extended Length | 8 in. |
Hydraulic Cylinder Type | Welded |
Maximum Operating Pressure | 3,000 PSI |
Maximum Weight Capacity | 9,420 lb. |
Model Compatibility | Most applications |
Package Quantity | 1 |
Pin Diameter | 1 in. |
Port Size | 8 SAE |
Primary Material | Iron |
Product Height | 2-1/2 in. |
Product Length | 2-1/2 in. |
Product Weight | 13 lb. |
Product Width | 4-1/2 in. |
Retracted Length | 16 in. |
Rod Diameter | 1-1/8 in. |
Single/Double Acting | Double acting |
Stroke Distance | 8 in. |
Warranty | 3 Year Limited |
Manufacturer Part Number | 207383 |
