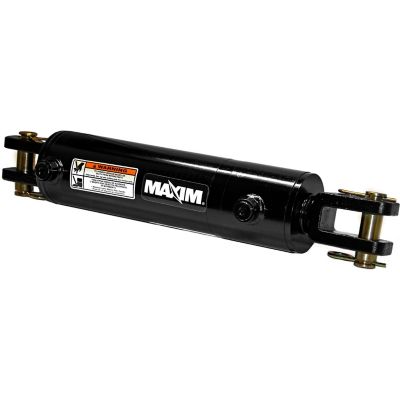

Maxim 2 in. Bore x 8 ASAE Stroke WC Welded Hydraulic Cylinder, 1.25 in. Rod Diameter
Maxim 2 in. Bore x 8 ASAE Stroke WC Welded Hydraulic Cylinder, 1.25 in. Rod Diameter
Item # 130770399
$179.99
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Maxim 2 in. Bore x 8 ASAE Stroke WC Welded Hydraulic Cylinder, 1.25 in. Rod Diameter
Item # 130770399
$179.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Maxim 2 in. Bore x 8 ASAE Stroke WC Welded Hydraulic Cylinder is clevis-mounted and exceeds the highest standards. You can rely on this hydraulic cylinder; it's been designed for demanding applications and built to ensure maximum reliability and performance. This welded cylinder is intended to be used in double-acting applications.
- Welded hydraulic cylinder intended to be used in double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube, precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- Rod: high-tensile ground and polished hard chrome-plated rod
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane
- End mounts: cast female clevises with pins and clips included
- Pin and Pin clip: high-tensile zinc-plated steel
- Piston ID Seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Painted black for a simple and effective hydraulic cylinder design
- Measures 20.25 in. retracted and 28.25 in. extended
- Column load: 9,420 lb.
- Pin diameter of 1 in. and rod diameter of 1.25 in.
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 8 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 6 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 18 lb. |
| Product Width | 0 N/A |
| Retracted Length | 20.25 in. |
| Rod Diameter | 1-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 ASAE |
| Warranty | 1 Year |
| Manufacturer Part Number | 288402 |
