Castair Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi

Item # 608309299

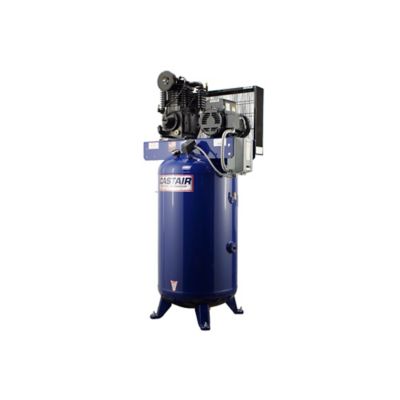

Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
$3,699.99
or
or
Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

  • New Arrival

Castair Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi

Item # 608309299

Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
Image showing  Air Compressor, Industrial Series, 80 gal. Vertical, 5 hp 1-phase 230 V, 17.5cfm @ 175psi
$3,699.99
or
or
financeCard Logo
$78/mo.†  for 48 months at 0% APR or earn $184 in Rewards+ on this purchase.
Valid 3/23/26 - 4/06/26
Apply now

This item is available online only

Out of stock delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The CASTAIR 5HP industrial series vertical air compressor features truly impressive build quality that s a cut above the competition. This compressor uses a two stage cast iron pump, running with oil lubrication at a low 767 RPM to make the machine quieter, with longer life than oil-less compressors. The pump features steel connecting rods, with automotive type rod insert bears at the crankshaft, with bearings at the wrist pin for long-term reliability. For ease of maintenance and reliability, the pump also has disc and spring valves, as well as a centrifugal unloader for loadless startup. The ASME-compliant tank has an 80 gal. capacity, four legs for stability, and is made in the USA. The motor is made in USA by Baldor, running at 1725 RPM, with a full 15% service factor.

  • 767 RPM, oil-lubed cast iron pump for quiet operation and long service life
  • 22.0 CFM at 0 PSI, 17.5 CFM at 175 PSI
  • Precision steel connecting rods with automotive type rod insert bearings at crankshaft, and bearings at wrist pin for long service life and reliability
  • Disc and spring valves for ease of service, efficiency, and maximum reliability
  • Centrifugal unloader for loadless startup every operation
  • Automotive filters with paper element provide clean intake air and quiet operation
  • Copper or stainless braided discharge tube for strength and increased heat dissipation
  • Heavy duty made in USA Baldor motor runs at 1725 RPM with full 15% service factor
  • Quality pressure switch and magnetic starter mounted and wired from factory
  • 30A breaker required for operation
