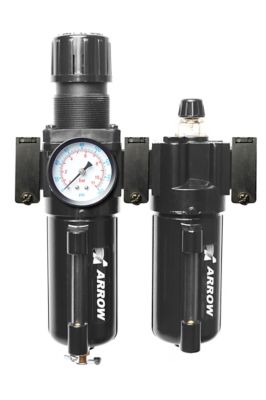

Arrow 1/4 in. Compressed Air Water Removing Filter, Regulator, Lubricator Combination Unit, Metal Bowl with Sight Tube
Arrow 1/4 in. Compressed Air Water Removing Filter, Regulator, Lubricator Combination Unit, Metal Bowl with Sight Tube
Item # 1701565
$21599
Sale
Save
Arrow 1/4 in. Compressed Air Water Removing Filter, Regulator, Lubricator Combination Unit, Metal Bowl with Sight Tube
Item # 1701565
$21599
Sale
Save
This Arrow 1/4 in. Compressed Air Water Removing Filter comes equipped with filter that includes 40 micron sintered bronze element, a 6 oz. metal bowl with a sight tube and manual drain. The regulator is equipped with (2) 1/4 in. full flow gauge ports, also a 3-position non rising adjustment knob; push to lock, pull to adjust and detach to make tamper resistant. Gauge is included. The lubricator comes with a 6 oz. metal bowl with a sight tube and 3-position, non-rising adjustment knob. It has a maximum pressure of 200 PSI, operating pressure range of 5 to 125 PSI and operating temperature range of 40 to 120 deg. F.
- Filter; 40 micron sintered bronze element that provides depth filtration; the element is high strength and cleanable; 6 oz. bowl with sight tube; modular in-line installation
- Backed by a 1-year warranty
- Regulator comes with tamper-proof cap and micro-finished brass seat
- Made in the USA
| Brand | Arrow |
|---|---|
| Country of Origin | Made in USA |
| Compatibility | With all filter/regulator - lubricator combination units |
| Filtration Material | Bronze |
| Inlet Size | 1/4 in. |
| Package Quantity | 1 |
| Product Height | 9 3/4 in. |
| Product Length | 7 1/8 in. |
| Product Weight | 3 lb. |
| Product Width | 2 1/2 in. |
| Manufacturer Part Number | C70352W |
