VIAIR 1/4 HP 1.5 gal. Fast Fill 120 PSI Tank Air Source Kit
Item # 138385799
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
The Viair 1.5 gal. Fast Fill 120 PSI Tank Air Source Kit comes with a low amp-draw, 25% duty cycle, 275C VIAIR compressor mounted on a 150 PSI-rated 1.5 gal. air tank with 5 ports. 120 PSI Tank Air Source kits come with a pre-wired 90 PSI on / 120 PSI off pressure switch. The 120 PSI Tank Air Source kit comes complete with a 1/4 in. NPT brass drain cock, 1/4 in. NPT ASME coded and certified safety valve, 1/2 in. NPT port compression fitting for 3/8 in. (I.D.) air line pre-installed. To use the Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. The use of a 40-amp relay and an appropriately-rated fuse is strongly recommended to preserve the life of the pressure switch.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 275C Pewter Air Compressor
- 1.5 gal. air tank in the Air Source kit has 5 ports
- Thermal Overload Protector

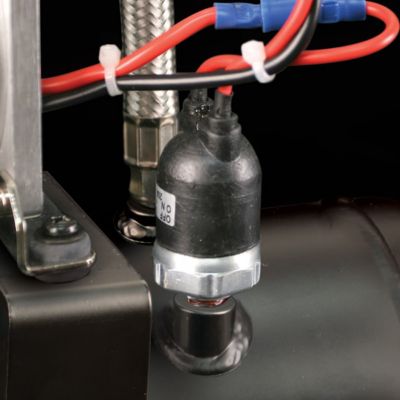

- Pre-wired 90 PSI on / 120 PSI off pressure switch

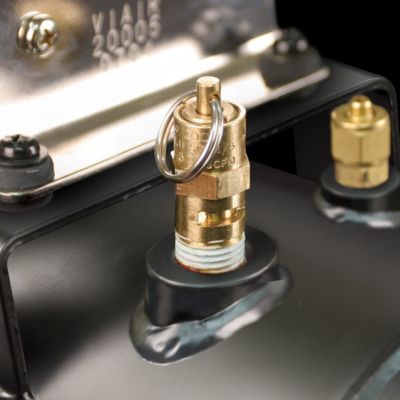

- 1/4 in. NPT ASME coded and certified safety valve (145 PSI)

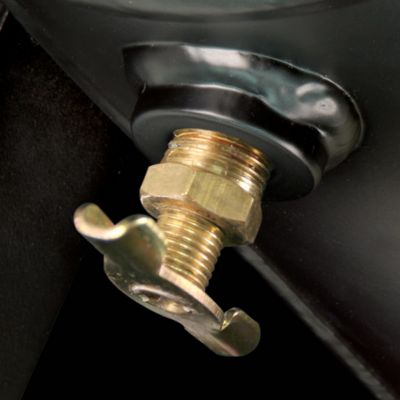

- 1/4 in. Brass Drain Cock
- Leader Hose with Check Valve
- 12-Volt 120 PSI tank Air Source kit
- Permanent Magnetic Motor
- Duty Cycle: 25% @ 100 PSI
- Max. working pressure: 120 PSI
- Max. amp draw of 120 PSI tank Air Source kit: 18 Amps
- Ingress protection rating: IP54
- Dimensions: 15.2 in. L x 5.9 in. W x 12.8 in. H
- Net weight: 15.65 lb.
- 1/2 in. NPT port compression fitting for 3/8 in. air line pre-installed
- Use of 40-amp relay and appropriately-rated fuse with the Air Source kit is recommended to preserve the life of the pressure switch
