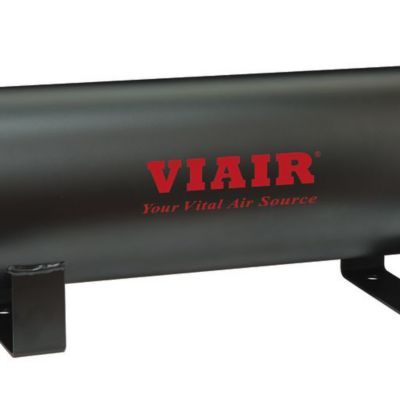

VIAIR's Dual 485C Onboard Air System (OBA) is our first OBA with new 485C Gen. 2 compressors that provide 100% duty cycle at 200 PSI. This pre-packaged compressed air solution includes: two Platinum 485C compressors, a 2.5 gal. air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system. The 485C features upgraded internal components that make it a true 200 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
Specification | Description |
---|---|
Brand | VIAIR |
Country of Origin | Imported |
Air Delivery SCFM At 40 PSI | 2.9 CFM |
Air Delivery SCFM At 90 PSI | 2.24 CFM |
Airflow Volume | 3.82 CFM |
Air Outlet Size | 0.375 in. NPT |
Amperage | 46 Amps |
Compressor Horsepower | 0.25 HP |
Compressor Maximum PSI | 200 PSI |
Compressor Operation | Automatic start/stop |
Compressor Tank Capacity | 2.5 gal |
Compressor Type | Oil less |
Compressor Voltage | 12V |
Decibel Rating | 74 dB |
Drain System | Petcock |
Drive Type | Direct Drive |
Features | 100% Duty Cycle @ 200 PSI |
Number Of Power Speeds | Single |
Power Type | 12 Volt, 12V |
Primary Color | Gray |
Primary Material | Steel |
Product Height | 6.44 in. each unit |
Product Length | 10.63 in. each unit |
Product Weight | 22.1 lb. |
Product Width | 4.1 in. each unit |
Pump Material | Steel |
Stage Type | Single-Stage |
Tank Fill Time | 2 min. 20 sec. |
Tank Orientation | Horizontal |
Warranty | 1 year manufacture Defect |
Manufacturer Part Number | 20085 |
