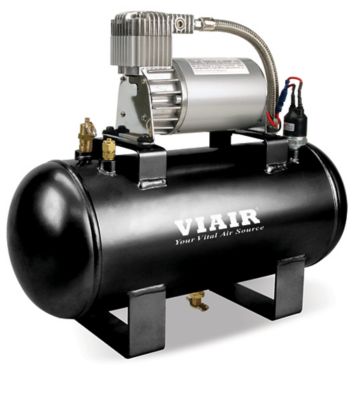

VIAIR 1/4 HP 2 gal. 200 PSI Fast-Fill-200 Air Source Kit
Item # 138385999
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.
The Viair 200 PSI 2.0 Gal Fast-Fill-200 Air Source Kit comes with a powerful, low amp-draw 380C VIAIR compressor mounted on a 200 PSI-rated 2.0 gal. air tank with 5 ports. All 200 PSI Air Source kits come with a pre-wired 165/200 PSI pressure switch. Both kits not only come with the industry's leading 200 PSI compressors but also come with a drain cock, safety valve, and 1/2-inch port compression fitting for 3/8 (I.D.) air line pre-installed! To use the 200 PSI Air Source kit, simply connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting. A 40-amp relay and an appropriately-rated fuse is recommended for use with this Air Source kit.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 200 PSI/ 1.58 cfm
- 380c Pewter Air Compressor
- 2.0 gal. Air Tank with 5 Ports
- Duty Cycle: 100% @ 100 PSI (55% @ 200 PSI)
- Max. Working Pressure: 200 PSI
- Safety Valve (250 PSI)
- Drain Cock
- Leader Hose with Check Valve
- 12-Volt 200 PSI Air Source kit
- Permanent Magnetic Motor
- Max. Amp Draw: 23 Amps
- Ingress Protection Rating: IP67
- Dimensions: 19 in. L x 5.9 in. W x 14.2 in. H
- Net Weight: 21.05 lb.
- Comes with a pre-wired 165/200 PSI pressure switch
- 1/2 in. port compression fitting for 3/8 in. (I.D.) air line is pre-installed with the Air Source kit
- Connect the pressure switch to fused power, make a solid ground, and connect an air line to the compression fitting to use the 200 PSI Air Source kit
- 40-amp relay and appropriately-rated fuse is recommended for use with the Air Source kit
| Brand | VIAIR |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 1.58 CFM |
| Air Outlet Size | 1/4 in. NPT |
| Amperage | 23A |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 200 PSI |
| Compressor Tank Capacity | 2 gal |
| Compressor Voltage | 12V |
| Cord Length | 1 ft. |
| Decibel Rating | 72dB |
| Drain System | Manual |
| Drive Type | DC |
| Features | None |
| Phase | Single |
| Number Of Power Speeds | Single |
| Number Of Wheels | 0 |
| Power Type | 12 Volt |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 17.0 in. |
| Product Length | 23.0 in. |
| Product Weight | 26.0 lb. |
| Product Width | 9.0 in. |
| Pump Material | Steel |
| Stage Type | Single-Stage |
| Tank Fill Time | 5 minutes |
| Tank Style | Horizontal |
| Warranty | 1 Year |
| Manufacturer Part Number | 20007 |
Q: Is this product water proof or water resistant ? Want to place in bed of truck
4 years ago- A: Per the manufacture: Do not use this product in or area where it can fall or be pulled into water or other liquids.4 years agoHelpful?
Q&As
Q: Is this product water proof or water resistant ? Want to place in bed of truck
4 years ago- A: Per the manufacture: Do not use this product in or area where it can fall or be pulled into water or other liquids.4 years agoHelpful?
