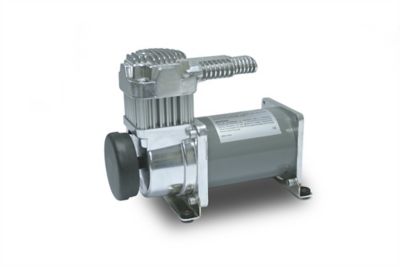

VIAIR 1/4 HP 2.5 gal. 250C IG Series Compressor Kit
Item # 138380699
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
The Viair 250C IG Series Compressor Kit is specifically designed to fill air reservoir tanks and features a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressor kits are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressor kits are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts. The included mounting hardware and installation instructions make set-up of the compressor kit simple.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 150 PSI/ 0.88 cfm
- 12-volt IG compressor kit
- Duty Cycle: 100% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Air Tank Size: 2.5 gal.
- Max. 12V Amp Draw: 11 Amps
- Thermal Overload Protector
- Vibration Isolators
- Mounting hardware included in compressor kit for easy installation
- Heavy Duty 1/4 in. NPT check valve protects IG compressor kit against high amperage restarts
- Stainless steel braided PTFE-lined leader hose
- Air line for remote mount air filter
- Remote mount air filter assembly
- Two replacement air filter elements included in IG series compressor kit
- Installation instructions included
- Permanent magnetic motor
- Ingress Protection Rating: IP67
- Max. Ambient Temp: +158 deg F
- Min. Ambient Temp: -40 deg F
- Dimensions: 7.4 in. L x 3.9 in. W x 6.75 in. H
- Net Weight: 6.75 lb.
