VIAIR Constant Duty Ada System Universal-Mount
$599.99

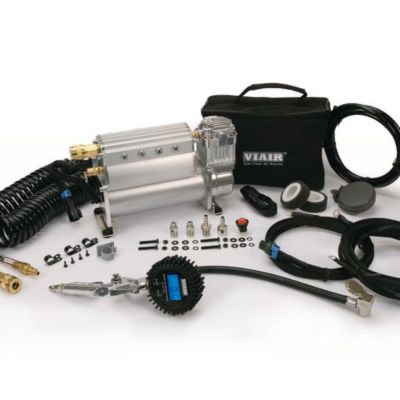

Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 100% Duty Cycle @ 100 PSI, continuous duty
- Compact design
- Built-in air reservoir
- Includes Plug & Play wiring harness

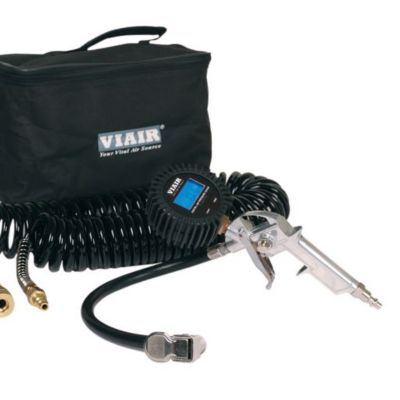

- Digital tire inflation gun for easy readability
| Brand | VIAIR |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 1.8 CFM |
| Air Outlet Size | 0.25 in. NPT |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 150 PSI |
| Compressor Tank Capacity | 0.33 gal |
| Compressor Voltage | 12V |
| Drain System | Screw valve |
| Drive Type | Direct Drive |
| Features | 100% Duty Cycle |
| Number Of Power Speeds | Single |
| Power Type | 12 Volt |
| Primary Color | Gray |
| Primary Material | Steel |
| Product Height | 6.75 in. |
| Product Length | 9.38 in. |
| Product Weight | 12.5 lb. |
| Product Width | 4 in. |
| Pump Material | Aluminum |
| Tank Style | Horizontal |
| Warranty | 1 year manufacture defect |
| Manufacturer Part Number | 45055 |
