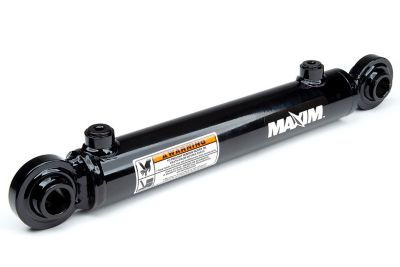

Maxim 2 in. Bore x 6 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Maxim 2 in. Bore x 6 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Item # 1307806
$209.99
Maxim 2 in. Bore x 6 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Item # 1307806
$209.99
The Maxim 2 in. Bore x 6 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. The swivel ball hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. A truly versatile design, this hydraulic cylinder is intended for double-acting applications, and it performs in those applications masterfully.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended use of swivel ball hydraulic cylinder: double-acting applications
- Piston: ductile iron
- Piston lock nut: nylock nut
- Gland: ductile iron with rod wear band
- Steel tube honed or skived for extended seal life
- Tube seal: O-ring and backup
- Ground and polished hard chrome-plated rod for durability
- Rod seal: U-cup
- Wiper: polyurethane
- End mounts: spherical
- All seals are manufactured to US specifications
- Ports: O-ring boss
- Paint: black
- 2 in. bore hydraulic cylinder with 6 in. strokes
- Measures 13.25 in. retracted and 19.25 in. extended
- Column load: 9,420 lb.
- Pin diameter of 1 in. and rod diameter of 1.25 in.
- 1 year warranty
- Maximum PSI: 3,000 PSI
- OD: 2-3/4 in.
- Width: 1-3/4 in.
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 19.5 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 15 lb. |
| Product Width | 0 N/A |
| Retracted Length | 13.5 in. |
| Rod Diameter | 2-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 6 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 400511 |
