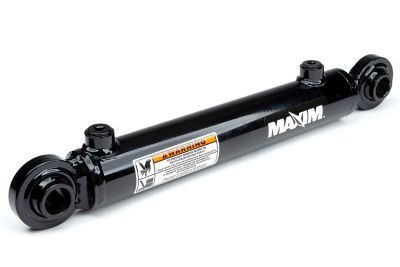

Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Item # 1307810
$199.99
Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder, 1.25 in. Rod Diameter
Item # 1307810
$199.99
The Maxim 2 in. Bore x 20 in. Stroke WSB Swivel Ball Welded Cylinder features swivel ball mounts, which make it great for use on compact equipment. This swivel ball hydraulic cylinder is designed for demanding applications and is built to ensure maximum reliability and performance. Made for versatility, this hydraulic cylinder is designed for use in any double-acting applications.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended use of swivel ball hydraulic cylinder: double-acting applications
- Piston: ductile iron
- Piston lock nut: nylock nut
- Gland: ductile iron with rod wear band
- Tube: steel tube honed or skived for extended seal life
- Tube seal: O-ring and backup
- Rod: ground and polished hard chrome-plated rod
- Rod seal: U-cup
- Wiper: polyurethane
- End mounts: spherical
- All seals are manufactured to US specifications
- Ports: O-ring boss
- Hydraulic cylinder measures 27.5 in. retracted and 47.5 in. extended
- Column load: 9420 lb.
- Max PSI: 3,000
- Pin diameter of 1 in. and rod diameter of 1.25 in.
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 47.5 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 24 lb. |
| Product Width | 0 N/A |
| Retracted Length | 27.5 in. |
| Rod Diameter | 2-3/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 20 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 400515 |
