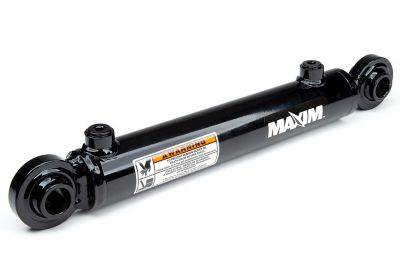

Maxim WSB Swivel Ball Welded Cylinder, 2 in. Bore x 30 in. Stroke, 1.25 in. Rod Dia.

SKU # 130781299
Product price

Save Up To
See Price at Check Out
No ratings found

Financing Available! Click here for more details...



Delivery Options:

Item Information

The Maxim WSB Swivel Ball Welded Cylinder with 2 in. Bore x 30 in. Stroke and 1.25 in. Rod Dia. features swivel ball mounts, which make it great for use on compact equipment. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. The Maxim WSB is available in bore sizes from 1 in. to 3 in. and strokes from 4 in. to 36 in.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Piston Lock Nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube Seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod Seal: U-cup
  • Wiper: polyurethane
  • End Mounts: spherical
  • All Seals: manufactured to US specifications
  • Ports: O-ring boss
  • Paint: black

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Maximum Operating Pressure: 3000 PSI
Product Weight: 32 lb.
Includes: Pins and clips
Application: For use in double or single acting hydraulic applications.
Special Feature: Welded cylinder with swivel end ball mounts
Package Quantity: 1
Maximum Weight Capacity: 9420 lb.
Brand: Maxim
Pin Diameter: 1 in.
Type: Welded Hydraulic Cylinder
Rod Diameter: 2-3/4 in.
Warranty: 1 Year
Product Type: Hydraulic Cylinders
Bore Diameter: 1 in.
Port Size: SAE 8
Material: Steel
Manufacturer Part Number 400517
