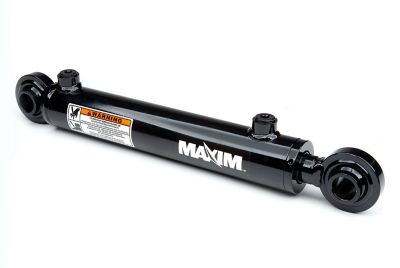

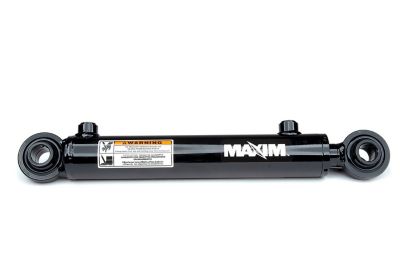

Maxim WSB Swivel Ball Welded Cylinder, 2.5 in. Bore x 24 in. Stroke, 1.5 in. Rod Dia.

SKU: 130781999
Maxim WSB Swivel Ball Welded Cylinder, 2.5 in. Bore x 24 in. Stroke, 1.5 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found


Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Maxim WSB Swivel Ball Welded Cylinder with 2.5 in. Bore x 24 in. Stroke and 1.5 in. Rod Dia. features swivel ball mounts, which make it great for use on compact equipment. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance. The Maxim WSB is available in bore sizes from 1 in. to 3 in. and strokes from 4 in. to 36 in.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Piston Lock Nut: nylock nut
  • Gland: ductile iron with rod wear band
  • Tube: steel tube honed or skived for extended seal life
  • Tube Seal: O-ring and backup
  • Rod: ground and polished hard chrome-plated rod
  • Rod Seal: U-cup
  • Wiper: polyurethane
  • End Mounts: spherical
  • All Seals: manufactured to US specifications
  • Ports: O-ring boss
  • Paint: black

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Rod Diameter: 2-3/4 in.
Includes: Pins and clips
Type: Welded Hydraulic Cylinder
Application: For use in double or single acting hydraulic applications.
Product Weight: 34 lb.
Maximum Operating Pressure: 3000 PSI
Maximum Weight Capacity: 14720 lb.
Package Quantity: 1
Brand: Maxim
Pin Diameter: 1 in.
Warranty: 1 Year
Bore Diameter: 1-1/2 in.
Special Feature: Welded cylinder with swivel end ball mounts
Port Size: SAE 8
Material: Steel
Manufacturer Part Number 400524
