Maxim 2.5 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
$219.99
Maxim 2.5 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
Maxim 2.5 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
5.01 Reviews
Item # 130772099
$219.99
or
or
Neighbor’s Club Members earn points with purchases.
Maxim 2.5 in. Bore x 14 in. Stroke WC Welded Cylinder, 1.5 in. Rod Diameter
5.01 Reviews
Item # 130772099
$219.99
or
or
$37/mo.† suggested payments with 6 Months Financing or earn $10 in Rewards+ on this purchase.Apply now
This item is available online only
Delivery to
37027
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

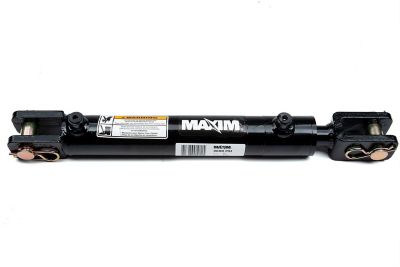

The Maxim 2.5 in. Bore x 14 in. Stroke WC Welded Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Cast female clevises with pins and clips are included with the welded hydraulic cylinder to act as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping
- Painted black
- Intended for double-acting applications
- Piston: ductile iron ASTM A536 65-45-12 for excellent life
- Piston lock nut: grade 8, high-tensile zinc-plated
- Gland: ductile iron ASTM A536 65-45-12
- High-tensile cold drawn tube is precision-honed for extended seal life
- Tube seal: nitrile O-ring with polytemp hytrel back-up
- High-tensile ground and polished hard chrome-plated rod for durability
- Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
- Wiper: polyurethane

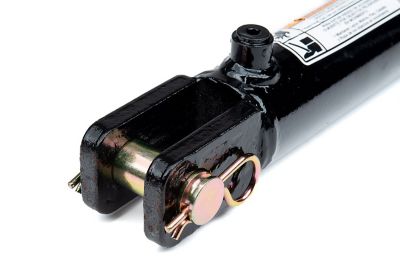

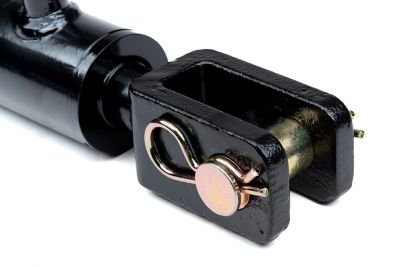

- Cast female clevises with pins and clips are the hydraulic cylinder's end mounts
- Pin and pin clip: high-tensile zinc-plated steel
- Piston ID seal: O-ring
- Piston OD seal: Hallite 755 piston seal
- Ports: SAE O-rings
- Welded hydraulic cylinder has a 2.5 in. bore and 14 in. stroke length
- Measures 24.25 in. retracted and 38.25 in. extended
- Column load: 14,720 lb.
- Pin diameter of 1 in. and rod diameter of 1.5 in.
- 1 year warranty
| Brand | Maxim |
|---|---|
| Country of Origin | Imported |
| Bore Diameter | 2.5 in. |
| Brand Compatibility | Universal |
| Compatibility | Universal |
| Extended Length | 38.25 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 14,720 lb. |
| Model Compatibility | Universal |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 0 N/A |
| Product Length | 0 N/A |
| Product Weight | 29 lb. |
| Product Width | 0 N/A |
| Retracted Length | 24.25 in. |
| Rod Diameter | 1-1/2 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 14 in. |
| Warranty | 1 Year |
| Manufacturer Part Number | 288419 |
Start typing your question and we'll check if it was already asked and answered.
1 - 2 of 2 Questions
Newest questions
Q: Are any engineering drawings available for this product?
4 years ago1 Answer
- A: That option is not available through TS, you would need to contact Maxim directly for assistance on that inquiry.4 years agoHelpful?
Q: What is the overall length from center of clevis to center of clevis?
6 years ago1 Answer
- A: The retracted length, center of pin to center of pin is 24.25” and extended length is 38.25”. It has a 1.5” pin diameter and has a column load of 14720 lbs.6 years agoHelpful?
