Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

5.03 Reviews

Item # 130773799

Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter

5.03 Reviews

Item # 130773799

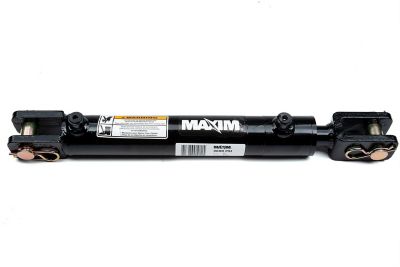

Image showing 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
Image showing 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder, 1.5 in. Rod Diameter
$279.99
See 2 deals for this item

This item is available online only

Standard Delivery to

37027

subtract

Free Ship To Store on orders $29 and over.Learn More

Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Maxim 3 in. Bore x 24 in. Stroke WC Welded Hydraulic Cylinder is clevis-mounted and exceeds the highest standards. The hydraulic cylinder is designed for demanding applications and comes built to ensure maximum reliability and performance. Set up is easy because the welded hydraulic cylinder has cast female clevises with pins and clips included as end mounts.Note: This product may require up to 2 additional days for order processing prior to shipping

  • Painted black for simple charm
  • Intended for double-acting applications
  • Piston: ductile iron ASTM A536 65-45-12 for excellent life
  • Piston lock nut: grade 8, high-tensile zinc-plated
  • Gland: ductile iron ASTM A536 65-45-12
  • High-tensile cold drawn tube is precision-honed for extended seal life
  • Tube seal: nitrile O-ring with polytemp hytrel back-up
  • High-tensile ground and polished hard chrome-plated rod is made to last
  • Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
  • Wiper: polyurethane
  • End mounts: cast female clevises with pins and clips included
  • Pin and pin clip: high-tensile zinc-plated steel
  • Piston ID seal: O-ring
  • Piston OD seal: Hallite 755 piston seal
  • Ports: SAE O-rings
  • Versatile and long lasting hydraulic cylinder has a 3 in. bore and 24 in. stroke length
  • Welded cylinder has a retracted length of 34.25 in. and extended length of 58.25 in.
  • Column load: 21,200 lb.
  • Weight: 37.48 lb.
  • Maximum PSI: 3,000 PSI
  • 1 year warranty
