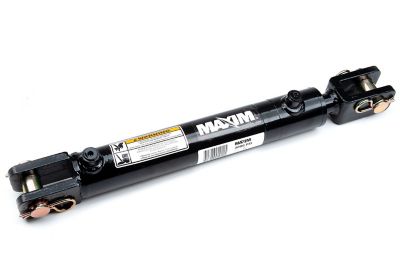

Maxim WC Welded Cylinder, 3 in. Bore x 16 in. Stroke, 1.5 in. Rod Dia.

SKU # 130773499
Enter Zip Code for price
Product price

Save Up To
See price at checkout Why?
No ratings found

Financing Available! Click here for more details...

Quantity

Autoship

Delivery Options for

This item will ship within 0 days.

Item Information

The Maxim WC Welded Cylinder with 3 in. Bore x 16 in. Stroke and 1.5 in. Rod Dia. is clevis-mounted and exceeds the highest standards. These cylinders are designed for demanding applications and are built to ensure maximum reliability and performance.

  • Painted black
  • Intended Use: double-acting applications
  • Piston: ductile iron ASTM A536 65-45-12 for excellent life
  • Piston Lock Nut: grade 8, high-tensile zinc-plated
  • Gland: ductile iron ASTM A536 65-45-12
  • Tube: high-tensile cold drawn tube, precision-honed for extended seal life
  • Tube seal: nitrile O-ring with polytemp hytrel back-up
  • Rod: high-tensile ground and polished hard chrome-plated rod
  • Rod seal: standard PolyPak with B-lip design (polyurethane U-cup with nitrile O-ring expander)
  • Wiper: polyurethane
  • End Mounts: cast female clevises with pins and clips included
  • Pin and Pin clip: high-tensile zinc-plated steel
  • Piston ID Seal: O-ring
  • Piston OD seal: Hallite 755 piston seal
  • Ports: SAE O-rings

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Bore Diameter: 3 in.
Brand: Maxim
Includes: Pins and clips
Material: Steel
Maximum Operating Pressure: 3000 PSI
Package Quantity: 1
Pin Diameter: 1 in.
Port Size: SAE 8
Product Type: Hydraulic Cylinders
Rod Diameter: 1-1/2 in.
Type: Welded Hydraulic Cylinder
Warranty: 1 Year
Product Weight: 37 lb.
Application: For use in double or single acting hydraulic applications.
Special Feature: Welded cylinder with clevis ends
Maximum Weight Capacity: 21200 lb.
Manufacturer Part Number 288433
