Chief 2 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder, 1.25 in. Rod Diameter
Item # 1306928
Item # 1306928

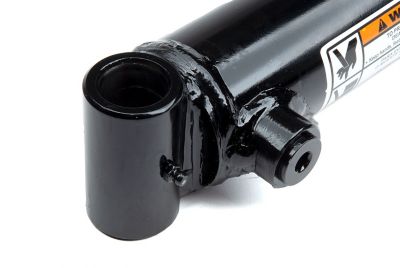

The Chief 2 in. Bore x 8 in. Stroke WT Welded Hydraulic Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end. You can rest easy knowing this cylinder is ideally suited for construction, metal fabricating, waste/recycling, OEM trailer manufacturing, and agricultural applications.Note: This product may require up to 2 additional days for order processing prior to shipping
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Intended use: double-acting applications
- Piston: ductile iron with wear ring(s)
- Gland: ductile iron, screw-in design with wear ring
- Tube: precision-honed steel
- Rod: ground and polished chromed steel, minimum 75,000 PSI yield
- Butt plate: steel
- End mounts: steel cross-tubes with grease zerk
- Spacer tube: steel on 48 in. stroke and above
- Gland seal: polyurethane U-cup
- Wiper: polyurethane
- Piston seal: 755 Hallite with wear ring(s)
- All other seals are selected and designed for maximum life
- Hydraulic cylinder functionally tested and pressurized to 1.5 times the normal working pressure for max reliability
- 3,000 PSI operating range on the welded hydraulic cylinder
- Column load: 9,420 lb.
- Pin diameter of 1 in. and rod diameter of 1.25 in.
- Includes SAE O-ring port hookups on small bores and NPT on large bores
- Measures 15 in. retracted and 23 in. extended
- Made in the USA
| Brand | Chief |
|---|---|
| Country of Origin | Made in USA |
| Bore Diameter | 2 in. |
| Brand Compatibility | Universal |
| Compatibility | Tractors |
| Extended Length | 23 in. |
| Hydraulic Cylinder Type | Welded |
| Maximum Operating Pressure | 3,000 PSI |
| Maximum Weight Capacity | 9,420 lb. |
| Model Compatibility | Most applications |
| Package Quantity | 1 |
| Pin Diameter | 1 in. |
| Port Size | SAE 8 |
| Primary Material | Steel |
| Product Height | 2.63 in. |
| Product Length | 0 N/A |
| Product Weight | 12.13 lb. |
| Product Width | 0 N/A |
| Retracted Length | 15 in. |
| Rod Diameter | 1-1/4 in. |
| Single/Double Acting | Double acting |
| Stroke Distance | 8 in. |
| Warranty | 3 Year Limited |
| Manufacturer Part Number | 212676 |
