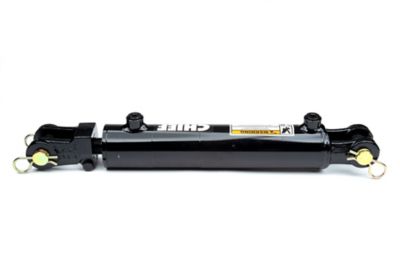

Chief WC Welded Cylinder, 4 in. Bore x 8 ASAE Stroke, 2 in. Rod Dia.

SKU: 130761699
Chief WC Welded Cylinder, 4 in. Bore x 8 ASAE Stroke, 2 in. Rod Dia.
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
No ratings found

Quantity

TSC of  #

,
TSC of  #

,
TSC of  #

,
TSC of  #

,
Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location

Item Information

The Chief WC Welded Cylinder with 4 in. Bore x 8 ASAE Stroke and 2 in. Rod Dia. is a high-quality welded cylinder with a strong forged steel base. The new Chief WC model has a screw-in gland that reduces the cylinder profile by replacing the collar style gland. The Chief WC provides added strength to agricultural implements, compact construction and transportation equipment, as well as waste/recycling applications. The base end clevis extends out 2 in. to ensure greater swing radius and Maximum flexibility.

  • Intended Use: double-acting applications
  • Piston: ductile iron
  • Gland: ductile iron
  • Tube: precision-honed steel
  • Rod: Hard chrome-plated
  • End Mounts: ductile iron female clevises with pins and clips included
  • Tube Seals: Buna O-ring
  • Rod Seal: deep polypak with B-lip design
  • Rod Wiper: urethane, snap-in
  • Piston Seal: Hallite 755 for prolonged wear resistance with wear ring
  • All Seals: manufactured to US specifications

Note: This product may require up to 2 additional days for order processing prior to shipping

Specification Description
Package Quantity: 1
Rod Diameter: 2 in.
Type: Welded Hydraulic Cylinder
Product Weight: 44 lb.
Warranty: 3 Year
Maximum Operating Pressure: 3000 PSI
Special Feature: Welded cylinder with clevis mounts
Pin Diameter: 1 in.
Bore Diameter: 4 in.
Brand: Chief
Includes: Pins and clips
Port Size: SAE 8
Maximum Weight Capacity: 37690 lb.
Application: For use in double or single acting hydraulic applications.
Material: Steel
Manufacturer Part Number 287057
