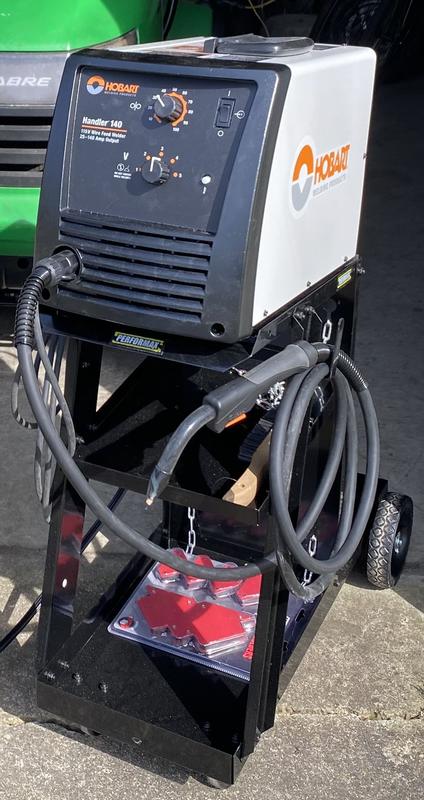

Hobart Handler 140 MIG Wire Welder, 500559

SKU: 381204099
Hobart Handler 140 MIG Wire Welder, 500559
Enter Zip Code for price More Info
Product price

Save Up To
See price at checkout More Info
Product Rating is 4.8
4.8
 (508)
Write a review

Quantity

Check Availability at Other Stores
Standard Delivery Not Available to
Notice: This item will ship within 0 days.
This product may require up to 0 additional days for order processing prior to shipping.
Change Delivery Location
Protect your purchase with Power Plus
Protect Your Purchase Click here for more details...

We'll fix it, replace it, or reimburse you for it.

Item Information

Handler 140 MIG Welder - A durable, portable wire feed welder that's great for auto repair, home or farm projects. Runs on 115V input power, welds up to 1/4 in. mild steel and is flux-cored or MIG ready.

  • Excellent arc performance - Smooth, stable arc on all thicknesses.
  • Industrial cast aluminum wire drive system - Professional and durable wire feed performance.
  • Five-position voltage control - Five voltage ranges allow you to fine-tune the arc.
  • Quick Select drive roll - Makes setup quicker by offering three grooves - two for different size solid wire and a third for flux-cored wire.
  • Weighs only 57 pounds - Easier to transport: increased ability to weld where you need to weld.
  • Convenient polarity changeover - Access makes it quick and easy to change polarity between solid or tubular wire.
  • Sloped control panel - Increased visibility to the user interface makes adjustments easier.
  • Self- resetting thermal overload protection - Protects power transformer from thermal overload to ensure reliability.
Hobart 5/3/1 Industrial Warranty

Specification Description
Maximum Wire Diameter: .045 in.
Product Weight: 57 lb.
Amperage Input at Rated Output (60 Hz) - 115V: 90 A @ 18.5 VDC
Solid Wire and/or Flux Cored: Solid Wire and Flux Cored
Wire Feed Speed Range: 40 IPM - 700 IPM
Amperage Range: 25 - 140 Amps
Clamp Cable Length: 10 ft.
Compatible Metal: Stainless Steel / Steel / Aluminum
Spool Size Capacity: 4 or 8 in. spools
Country of Origin: Made in USA
Amperage Input at Rated Output (60 Hz) - KW: 20 V, 2.9 KVA, 2.5 KW
Product Length: 19.5 in.
Special Feature(s): Self-resetting motor protection - Protects wire feed system from overload, no fuses to change or circuit breaker buttons to reset.
Current Range: DC
Rated Output at 20% Duty Cycle: 90 Amps
Gun Length: 10 ft.
Ground Cord Length: 10 ft.
Product Height: 12.375 in.
Amperage Input at Rated Output (60 Hz) - KVA: 115 V: 25-140 Amps
Maximum Material Thickness: Mild Steel 24.00 ga - 1/4 in.
Application/Use: Maintenance/repair, Auto body, Farm/ranch, Home repair, DIY, Metal art
Part Number: 500559
Brand: Hobart
Output Amperage Range: 90 A at 18.5 VDC, 20% duty cycle
Product Width: 10.625 in.
Maximum Open Circuit Voltage: 28 VDC
Input Voltage: 110/115/120 V
Manufacturer Part Number 500559
Hobart Handler 140 MIG Wire Welder, 500559 is rated 4.8 out of 5 by 508.
Rated 5 out of 5 by from Great home shop welder. I have been looking for a 120v welding machine for a while. After talking to friends and reading reviews I chose the Hobart Handler 140. It is very well made. Just learning to use mig machine with flux-core wire. I haven’t done any gas or arc welding for many years and I wanted to try a mig machine. Go with a Hobart. You won’t be disappointed.
Date published: 2020-08-01
Rated 5 out of 5 by from Hobart 140 mig welder This is a great Welder. Easy to put together to get started. Comes with a small roll of Flux core wire.Do yourself a favor and get a 1lb roll of solid .30 Hobart wire and a bottle of shielding gas and you are set. Im no welder by no means and this thing puts out some nice welds.
Date published: 2020-07-28
Rated 5 out of 5 by from Hobart Handler 140 Great welder easy to set up seems well built has nice features for a small welder
Date published: 2020-07-28
Rated 4 out of 5 by from Great product I am very pleased with the smoothness of this machine. Im glad I didn't buy a cheap welder.
Date published: 2020-07-26
  • y_2020, m_8, d_9, h_16
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.10
  • cp_1, bvpage1
  • co_hasreviews, tv_131, tr_377
  • loc_en_US, sid_381204099, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • REVIEWS, PRODUCT

what thickness of aluminium can be welded with this unit?

Asked by: wild1
14 gauge, possibly 1/8" maximum with preheat.
Answered by: Hobart Specialist
Date published: 2020-04-23

Can you weld Stainless Steel with this

Asked by: WillieP
Yes. You can weld Stainless steel.
Answered by: WillR
Date published: 2019-03-09

Can this welder be used with a spool gun for aluminum?

Asked by: Colby112011
This welder is capable of welding aluminum and can be used with a spool gun.
Answered by: BrittanyH
Date published: 2020-01-25

what does MIG mean

Asked by: puddin
MIG welding stands for metal inert gas welding. It was originally used to weld non-ferrous metals such as aluminum. It eventually was used on steel too. It is a quicker method of welding as compared to other methods of welding.
Answered by: DanielB
Date published: 2018-04-08

Can the 140 weld aluminum?

Asked by: JLago
Yes.
Answered by: Hobart Specialist
Date published: 2020-01-25

Where is it made? I heard that recent HH 140 are made in China. Or does it still have a stamp that it's made in USA?

Asked by: AndySon123
According to our information, this is made in the USA.
Answered by: ZackZ
Date published: 2020-04-23

What wattage Generator can power this welder so you can use it away from the shop?

Asked by: New operator
The Handler 140 requires at least a 20 amp 120 Volt service. This would be a 3000 watt 120V generator or a 5000 watt 120/240 volt generator. We do not recommend an inverter type generator.
Answered by: Hobart Specialist
Date published: 2020-04-23

Can you use a 10 pound roll of wire with this welder

Asked by: GSteg2013
Yes, that is also the largest roll that welder can accommodate.
Answered by: DanielB
Date published: 2020-01-25
