GPI 25 gal./100 Strokes Manual HP-90 Hand Pump
GPI 25 gal./100 Strokes Manual HP-90 Hand Pump
Item # 395801699
Neighbor’s Club Members earn points with purchases.
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
Neighbor’s Club Members earn points with purchases.
Invest in a transfer pump that's worth it. The GPI HP-90 Hand Pump is reliable and ready to work. with a built-in siphon valve, this hand fuel transfer pump makes your job easier. This oil transfer pump is durable and won't let you down. Backed by a 2 year limited warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Size: 2 in. NPT Bung
- Cast aluminum oil transfer pump, 2-piece PVC suction pipe
- Hand fuel transfer pump has flow rate of up to 25 gal/100 strokes or 1 quart per stroke
- 2 year limited warranty

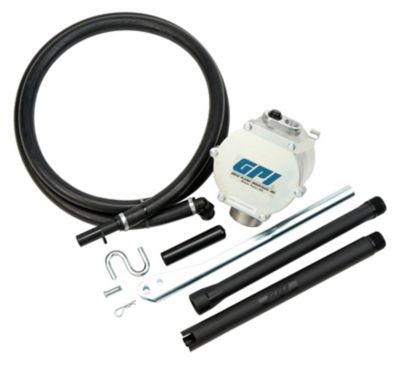

- Includes: 3/4 in. x 8 ft. hose, thermoplastic nozzle with built-in nozzle holder and two-piece PVC suction pipe
- For use with gasoline (up to 15% alcohol blends such as E15), diesel fuel (up to 20% bio-diesel blends such as B20), kerosene, petroleum products such as light oil (up to 10W) and hydraulic fluid
- Transfer pump designed for mounting on portable, vented fuel tanks
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| Body Materials | Aluminum |
| Compatible Fluids | Gasoline |
| Features | Size: 2 in. NPT Bung |
| Intended Use Grade | Standard |
| Power Type | Manual |
| Product Height | 6.4 in. |
| Product Length | 12 in. |
| Product Weight | 12.4 lb. |
| Product Width | 3.3 in. |
| Warranty | 2 Year Limited |
| Manufacturer Part Number | 131000-1TSC |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Does this need a pressure valve with it or does it come with one built in?
a year ago1 Answer
- A: Hi, Here is the information we received from the vendor- The HP-90 Hand Pump does not need a pressure valve. It does have an anti-siphon vent on the top of the pump.a year agoHelpful?
Q: Do you make hand pump I can put on a275 gal home heating tank that sits upright
2 years ago1 Answer
- A: Hi 1107, Per the vendor: The HP-100 hand pump will work for this application as long as it has the 2" Female NPT bung adaptor on top of the tank. SKU: 1093506992 years agoHelpful?
Q: Does GPI sell a strainer?
4 years ago2 Answers
- A: To get the correct part number for your application, please give our trained product support team a call at 1-800-835-0113. Our product support team is here in our Wichita, Kansas facility from 8am-5pm Central time Monday through Friday. Thank you and have a great day, GPI Customer Service4 years agoHelpful?
Q: Is the pvc suction pipe long enough to use this in a 55 gal barrel? How long is the suction pipe when fully extended?
4 years ago1 Answer
- A: Hello, Yes the suction pipe that comes with the HP-90 hand pump has a telescoping suction pipe that can go from 15" collapsed to 40" fully extended. It can easily reach the bottom of a 55 gallon drum. Thank you, GPI Team.4 years agoHelpful?
Q: can't get this hand pump to prime. please advise....
4 years ago3 Answers
- A: Good morning, In regards to the HP-90 not priming. There are several factors to consider, when something like this happens. 1) Check the anti-siphon valve. (little black looking button). You will take a putty knife, or flat edge, and pop that off to check. Next screw the plug out of the housing. check the umbrella valve for debris, and clean with WD-40, also check to make sure the O-ring is past the threads. 2) You need to use this pump with the hose it came with, and an open ended nozzle. Nothing should be blocking the nozzle. 3) Check all of your wetted seals. (under cover plates). 4) Make sure that the suction pipe, is not touching the very bottom of the fuel tank. It needs to be 2" above the bottom. Please contact us, if this does not resolve your issue. Thank you, Tyler4 years agoHelpful?
Q: Just installed pump but it won’t pump fuel? I can blow on end of hose and heat bubbles in tank but no suction. Do I need to prime this pump if so how?
5 years ago1 Answer
- A: Please contact GPI Product Support at (800) 835-0113 directly for support with this item.5 years agoHelpful?
Q: I need a repair kit, or rebuild kit
5 years ago2 Answers
- A: The part number for the HP-90 overhaul kit is 131502-01. Please contact GPI Product Support at (800) 835-0113 to find a distributor for this item.5 years agoHelpful?
Q: Does this pump have a way to lock it with a paddle lock? I have a tank in the back of my truck and need to prevent theft issues, or at least provide a deterrent...
7 years ago1 Answer
- A: It does not, but you could remove the clevis pin and hitch clip from the handle and store it within your truck or wherever when not using the hand pump and no one would be able to use the pump. That would be my best suggestion for you otherwise you could probably drill a hole out in the handle and make your own lock of some sort. I hope that helps. Thank you, GPI sales team.7 years agoHelpful?
Q: Would this pump work to pump round-up out of a 30 gallon barrel? Is it designed for that type of chemical?
7 years ago1 Answer
- A: No, the HP-90 would not be a good pump for round-up; however, our model HP-100-C item 114000-11 would work. You will have to special order this item, but TSC can get it. If you need further assistance or have any questions let us know! Thank you, GPI sales team.7 years agoHelpful?
Q: Can a filter be installed for diesel fuel?
7 years ago1 Answer
- A: We do not recommend filters with the hand pump because the hand pump does not put out enough pressure. However, you can install a strainer in-line, but note it will require maintenance depending on how often you use the pump and how dirty your fuel or tank is.7 years agoHelpful?
1 - 10 of 16 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: Does this need a pressure valve with it or does it come with one built in?
a year ago1 Answer
- A: Hi, Here is the information we received from the vendor- The HP-90 Hand Pump does not need a pressure valve. It does have an anti-siphon vent on the top of the pump.a year agoHelpful?
Q: Do you make hand pump I can put on a275 gal home heating tank that sits upright
2 years ago1 Answer
- A: Hi 1107, Per the vendor: The HP-100 hand pump will work for this application as long as it has the 2" Female NPT bung adaptor on top of the tank. SKU: 1093506992 years agoHelpful?
Q: Does GPI sell a strainer?
4 years ago2 Answers
- A: To get the correct part number for your application, please give our trained product support team a call at 1-800-835-0113. Our product support team is here in our Wichita, Kansas facility from 8am-5pm Central time Monday through Friday. Thank you and have a great day, GPI Customer Service4 years agoHelpful?
Q: Is the pvc suction pipe long enough to use this in a 55 gal barrel? How long is the suction pipe when fully extended?
4 years ago1 Answer
- A: Hello, Yes the suction pipe that comes with the HP-90 hand pump has a telescoping suction pipe that can go from 15" collapsed to 40" fully extended. It can easily reach the bottom of a 55 gallon drum. Thank you, GPI Team.4 years agoHelpful?
Q: can't get this hand pump to prime. please advise....
4 years ago3 Answers
- A: Good morning, In regards to the HP-90 not priming. There are several factors to consider, when something like this happens. 1) Check the anti-siphon valve. (little black looking button). You will take a putty knife, or flat edge, and pop that off to check. Next screw the plug out of the housing. check the umbrella valve for debris, and clean with WD-40, also check to make sure the O-ring is past the threads. 2) You need to use this pump with the hose it came with, and an open ended nozzle. Nothing should be blocking the nozzle. 3) Check all of your wetted seals. (under cover plates). 4) Make sure that the suction pipe, is not touching the very bottom of the fuel tank. It needs to be 2" above the bottom. Please contact us, if this does not resolve your issue. Thank you, Tyler4 years agoHelpful?
Q: Just installed pump but it won’t pump fuel? I can blow on end of hose and heat bubbles in tank but no suction. Do I need to prime this pump if so how?
5 years ago1 Answer
- A: Please contact GPI Product Support at (800) 835-0113 directly for support with this item.5 years agoHelpful?
Q: I need a repair kit, or rebuild kit
5 years ago2 Answers
- A: The part number for the HP-90 overhaul kit is 131502-01. Please contact GPI Product Support at (800) 835-0113 to find a distributor for this item.5 years agoHelpful?
Q: Does this pump have a way to lock it with a paddle lock? I have a tank in the back of my truck and need to prevent theft issues, or at least provide a deterrent...
7 years ago1 Answer
- A: It does not, but you could remove the clevis pin and hitch clip from the handle and store it within your truck or wherever when not using the hand pump and no one would be able to use the pump. That would be my best suggestion for you otherwise you could probably drill a hole out in the handle and make your own lock of some sort. I hope that helps. Thank you, GPI sales team.7 years agoHelpful?
Q: Would this pump work to pump round-up out of a 30 gallon barrel? Is it designed for that type of chemical?
7 years ago1 Answer
- A: No, the HP-90 would not be a good pump for round-up; however, our model HP-100-C item 114000-11 would work. You will have to special order this item, but TSC can get it. If you need further assistance or have any questions let us know! Thank you, GPI sales team.7 years agoHelpful?
Q: Can a filter be installed for diesel fuel?
7 years ago1 Answer
- A: We do not recommend filters with the hand pump because the hand pump does not put out enough pressure. However, you can install a strainer in-line, but note it will require maintenance depending on how often you use the pump and how dirty your fuel or tank is.7 years agoHelpful?
1 - 10 of 16 Questions
Similar Items
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Reviews
Summary of Reviews
The product is generally well-received, with users praising its performance and ease of use. It is described as effective for a variety of applications, with fast fuel delivery and sturdy construction. However, some users have experienced issues such as difficulty priming in cold weather, leaks, and...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Most Helpful Favorable Review
5 out of 5 stars.
Great Pump
15 years ago
This is a great pump,it pumps with every stroke and fills my tractors fast with little effort and is very durable.
5 people found this helpful
Show Reviews:
Most Helpful Critical Review
1 out of 5 stars.
Not good.
11 years ago
I bought this pump in haste last winter to replace a 20 year old Tuthill electric pump that had been in service refueling equipment that whole time outdoors. This pump was only used infrequently as it was at home, yet the cheezy "S" connector snapped rather quickly and I had to make my own connector to fix that. Mine was double shear... unlike their idea with the "s" that bends back and forth until failure. The number of pumps before prime kept increasing with each use until now, a little less than a year later, it is worthless. Will not prime even after you have pumped until both arms fall off. The shaft seal packing is the issue. Bubbles can be seen around the packing. If you ever did get it primed, fuel would leak around that shaft as others have pointed out.
I just ordered another tuthill hand pump identical to the one that has been on our 2000gal tank for over 30 YEARS!
Buy something ELSE.
11 people found this helpful
Show Reviews:
Customer Images and Videos
- purchase
- price
- quality
- setup
- instructions
- for cold weather
- ease of use
- installation
1 to 4 of 153 Reviews .
1 – 4 of 153 Reviews
Most Recent
Texas
Reviews 2
5 out of 5 stars.
Online order was delivered on time
3 months ago
Fit my needs with my fuel
SweepstakesYes
Yes, I recommend this product.
Clarksville, OH
Review 1
3 out of 5 stars.
Take your chances....
6 months ago
I have purchased two of these pumps. The one purchased nearly 10 years ago for a 55 gallon gas drum still works wonderfully, although the S ring attachment of the pull handle is badly worn and sloppy. Unfortunately, my 2 year pump on my 55 gal diesel drum has been slow to prime from the beginning and now doesn't prime at all. I don't know if the problem with these pumps is the type of fuel or overall quality but for the price I am very disappointed in the second pumps longevity.
Yes, I recommend this product.
Review 1
1 out of 5 stars.
Hand Pump
a year ago
Pump did not work carried back to Stuart VA. store the day after I bought it the store refused to make right
No, I do not recommend this product.
South Carolina
Review 1
3 out of 5 stars.
Dry rotted hose after 1 year.
a year ago
Good pump but bad hose. The hose dry rotted after a year. The drum, pump and hose were under cover. Geeze can't anything last anymore!
Yes, I recommend this product.
