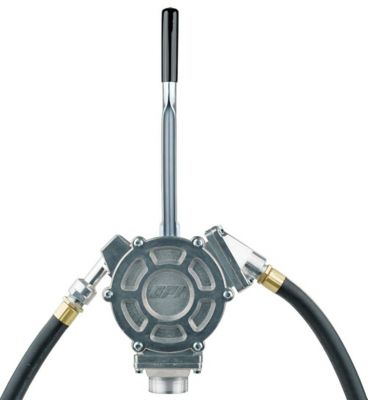

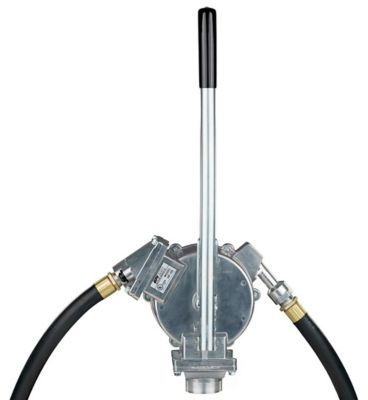

GPI 50 gal./100 Strokes Manual Lever Action Fluid Transfer Hand Pump
GPI 50 gal./100 Strokes Manual Lever Action Fluid Transfer Hand Pump
4.3181 Reviews
Item # 395805899
Neighbor’s Club Members earn points with purchases.
GPI 50 gal./100 Strokes Manual Lever Action Fluid Transfer Hand Pump
4.3181 Reviews
Item # 395805899
Out of stock at or near
Grassland (franklin) TN
Out of stock delivering to
37027
This item is not available
Search Stores
Temporarily unavailable
Neighbor’s Club Members earn points with purchases.
The GPI HP-100 Fluid Transfer pump is a premium fuel piston hand pump that is reliable and versatile, delivering the highest flow rate in the industry year after year. It is a single solution for multiple pumping applications, suitable for pumping fuels and motor oils. The HP-100 features a Dual-Flo handle providing the user with the flexibility of operating the pump at two flow rates. A setting of 1/2-gallon per stroke cycle provides faster high-capacity flow for fuels. A 1/4-gallon setting allows for easier pumping of thicker fluids, such as motor oil, even in cold temperature conditions (-25°F / -32°C). Backed by a 2 year warranty.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Dual-Flo piston design pumps fluid on both the push and pull stroke, Built -in anti siphon valve.
- Includes a low setting for low-volume, low-resistance pumping (1/4 gallon) and a high setting for high volume, high-resistance pumping (1/2 gallon).
- Light-weight aluminum body provides corrosion resistance and reduces tank stress.
- Lockable handle deters fluid theft. Fits a 2 in. NPT bung.
- For use with diesel (diesel blends to B20), hydraulic fluid, kerosene and 30W oil.

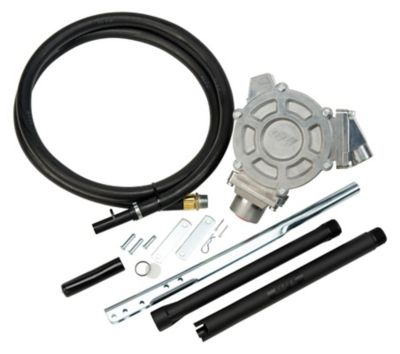

- Includes a 3/4 in. x 8 ft. (2.44 m) fuel dispensing hose and thermoplastic nozzle.
- 2-yr Warranty
- U.L. listed to U.S. and Canadian standards.
| Brand | GPI |
|---|---|
| Country of Origin | Made in USA |
| Body Materials | Aluminum |
| Compatible Fluids | Gasoline |
| Discharge Connection | Threaded Male |
| Discharge Diameter | 0.75 in FNPT |
| Duty Cycle | 50 gal. per 100 strokes |
| Features | The HP-100 generates twice the flow of any other hand pump. For heavier fluids or for easier pumping, use the second stroke setting. in either handle position, expect economical, trouble-free operation. |
| Horsepower | 1 person |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 0.75 in. |
| Intended Use Grade | Standard |
| Power Type | Manual |
| Product Height | 23 in. |
| Product Length | 8.23 in. |
| Product Weight | 13.9 lb. |
| Product Width | 9.68 in. |
| Voltage | 0v |
| Warranty | 2 Year |
| Manufacturer Part Number | 114000-5TSC |
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 16 Questions
Newest questions
Q: does it come with diaframe kit
5 days ago1 Answer
- A: Howdy neighbor! No, the GPI 50 Gallon per 100 Stroke Manual Lever Action Hand Pump (Part Number 114000-5TSC) does not come with a diaphragm kit because it is a piston-driven pump, not a diaphragm pump. The "TSC" suffix simply designates the specific factory package shipped to Tractor Supply Company, which includes the aluminum pump housing, an adjustable 15-to-40-inch suction pipe, a 2-inch NPT bung adapter, and a 3/4-inch by 8-foot grounded nitrile fuel hose with a metal nozzle.4 days agoHelpful?
Q: Twice here GPI says you cannot use a filter on this pump, yet you clearly show a filter in the pictures above. So, whats the deal?
2 years ago1 Answer
- A: Hi, Here is what we received back from the vendor- "In the past, we recommended not using a filter with the HP-100 hand pump. We’ve performed field testing with filters on the HP-100 and it is acceptable to use, just be aware the more particles the filter picks up, the more back pressure it will cause making it harder to pump."2 years agoHelpful?
Q: The 1/2" vent plug is prone to leaking after very few uses. What is the thread size to replace it? I think it's 1/2" nptf, is it tapered or straight? Can it just be plugged or is the vent absolutely necessary?
3 years ago1 Answer
- A: Hi! Please contact the manufacturer's GPI Product Support department for this specific inquiry so they can assist with more precise information. GPI Product Support Team at 1-800-835-0113 (M-F, 8am to 5pm CST)3 years agoHelpful?
Q: Does this pump have the ability to syphon? I regularly defuel then refuel aircraft during maintenance.
3 years ago1 Answer
- A: Hi there, Thanks for reaching out. Here is the information we received back from the vendor- No, the HP-100 cannot be used as a syphoning pump. This is a transfer pump only.3 years agoHelpful?
Q: Do you know if the GPI HP-100 will screw on to a 30 gal Arksen transfer tank
4 years ago1 Answer
- A: Good afternoon, The HP-100 has 2" NPT male threads, on the inlet bung side. If the tank that you mentioned, has the 2" female threads, then it will work. Have a great day! GPI4 years agoHelpful?
Q: will this work on a 55 gal drum or barrel
4 years ago1 Answer
- A: Good morning, Yes, there are no restrictions on the tank size, that these pumps can be used with. It is compatible, with a 55 gal drum or barrel. Just make sure your NPT threads, are able to mate up with the bung threads of the HP-100. Sincerely, GPI4 years agoHelpful?
Q: WILL THIS PUMP FIT A DEE ZEE TRANSFER TANK 108 GAL SAFETY FILL -TRACTOR SUPPLY-SKU 1172332?
6 years ago1 Answer
- A: Yes, it has a 2” threaded bung that will fit all Dee Zee transfer pumps.6 years agoHelpful?
Q: will this work with a Delta Steel Transfer Tank, 50 gal.
7 years ago1 Answer
- A: The pump has a 2" NPT tank fitting, so as long as you can mount it there shouldn't be any reason you cannot use it. The suction lift is 5 ft for hand pumps, so also insure the depth of the tank does not exceed 5 ft and you will not have any issues. Also please note that it's not recommended to install a canister filter on the outlet of the hand pump. Any other questions please give us a call! Thank you, GPI sales team.7 years agoHelpful?
Q: Can this be used with aviation fuel?
7 years ago1 Answer
- A: Hello, yes this pump can be used for aviation fuel. The only thing is it is does not have any aviation ratings. but it will work fine for the fuel. Thanks, GPI Sales Team.7 years agoHelpful?
Q: Haw far will this product pump?
7 years ago1 Answer
- A: Hello, these pumps are only tested to 8ft. It may pump further but 8ft is the longest we test here at the factory. Thank you, GPI Sales Team.7 years agoHelpful?
1 - 10 of 16 Questions
Similar Items
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Items You May Like
-
-
Top Rated
-
-
-
-
-
Top Rated
-
-
-
-
-
Customers Also Bought
-
-
-
Top Rated
-
-
-
-
-
-
-
-
-
Reviews
Summary of Reviews
This hand pump is generally a reliable product for small-scale fuel transfer tasks. Many customers praised its performance, describing it as effective and easy to use. However, some experienced issues...
- purchase
- quality
- price
- ease of use
- small
- packaging
- installation
- satisfaction
1 to 4 of 181 Reviews .
1 – 4 of 181 Reviews
Most Recent
Review 1
3 out of 5 stars.
Hand pump
2 years ago
Works as it should.
Texas
Reviews 2
5 out of 5 stars.
Works great
2 years ago
Moves more oil than anticipated
Yes, I recommend this product.
Alabama
Review 1
4 out of 5 stars.
Good pump with a modification or two
2 years ago
Pump accomplishes the task with relative efficiency. Easy to assemble and put into action. I replaced the plastic nozzle with an automobile style pump handle from old pump. This pump could be improved with a way to hang the handle. As it is, I have to just lay the hose and handle over the tank when not in use. A simple oversight (or cost savings) which creates a negative for the user. I also added a longer hose for the ability to fuel tractor.
Yes, I recommend this product.
Anonymous
Jonesboro ar
Review 1
5 out of 5 stars.
Amazing water pump
2 years ago
This water pump was amazing it worked great I was truly satisfied with my purchase
2023 Q4 SweepstakesYes
Yes, I recommend this product.
