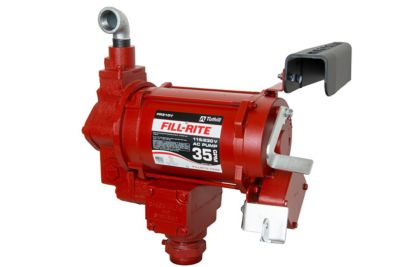

Fill-Rite 3/4 HP 115/230V Electric Fuel Transfer Pump, 35 GPM, Pump Only, FR310VN
Item # 186086299
Get everything you need
Neighbor’s Club Members earn points with purchases.
Item # 186086299
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
The Fill-Rite 115/230VAC 35 GPM Fuel Transfer Pump features 115V/230VAC dual voltage power input and is built to last with cast-iron construction. The fuel transfer pump is a heavy-duty fuel transfer pump optimized for long-lasting use. This transfer pump includes installation components and no additional accessories. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories. Proudly manufactured in the USA.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Transfers fuel at 35 GPM; ideal pump for filling heavy equipment from above ground storage tanks
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in high-volume, stationary applications
- Thermally-protected motor prevents overheating, ensuring your pump withstands the test of time
- Dual voltage design allows you to select either 115V or 230VAC power with the simple turn of a switch
- Fuel transfer pump has an industry-leading limited lifetime warranty to protect your purchase and your business

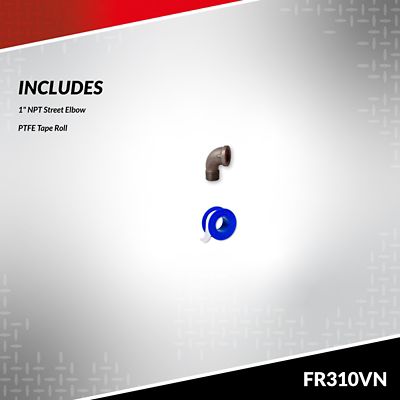

- Installation components included with the fuel transfer pump; no additional accessories
- Transfer pump is proudly manufactured in the USA
- 60 ft. discharge head
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | AC |
| Amperage | 5A |
| Body Materials | Cast iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1 in. |
| Duty Cycle | 30 min. |
| Features | Self-Priming |
| Horsepower | 0.75 HP |
| Hose Diameter | 1 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Intended Use Grade | Industrial |
| Maximum Flow Rate | 35 GPM |
| Maximum Head Lift | 18 ft. |
| Maximum Operating Pressure | 26 PSI |
| Maximum Operating Temperature | 150 deg. |
| Minimum Operating Pressure | 16 deg. |
| Minimum Operating Temperature | -40 deg. |
| Power Type | Electric |
| Product Height | 13.75 in. |
| Product Length | 9 in. |
| Product Weight | 65.7 lb. |
| Product Width | 17 in. |
| Voltage | 115/230V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR310VN |
