Fill-Rite 12V 15 GPM Fuel Transfer Pump with Arctic Package, FR1210HARC
Item # 186089099
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
Item # 186089099
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Neighbor’s Club Members earn points with purchases.

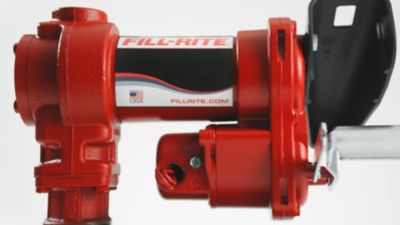

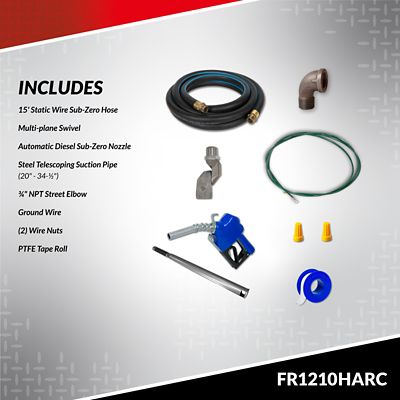

The Fill-Rite 12V 15 GPM Fuel Transfer Pump with Arctic Package is a heavy-duty fuel transfer pump. This pump and accessory bundle comes complete with a hose, nozzle, suction pipe, and installation components. Proudly manufactured in the USA, this Fill-Rite fuel transfer pump is constructed with heavy-duty materials to withstand rugged everyday use, extreme weather exposure, and both on and off-road applications. Backed by a lifetime limited wararnty. You work through all kinds of conditions, so why shouldn't your fuel transfer pump? For over 60 years, Fill-Rite has set the standard for reliable fuel transfer pumps, meters, and accessories.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Durable cast-iron construction provides heavy-duty performance and allows the fuel transfer pump to withstand daily use in mobile tank applications
- Adjustable electrical junction box rotates 180 for added flexibility while wiring and improved installation in tight spaces
- Thermally-protected motor prevents the fuel transfer pump from overheating, ensuring your pump withstands the test of time
- Built-in strainer filters out particulates and prevents fuel contaminates from damaging your equipment
- On/off switch lever features a cast metal stopping arm, preventing premature failure from repeated use
- We stand behind our fuel transfer pump with an industry-leading Limited Lifetime Warranty to protect your purchase and your business
- Flow rate range of the fuel transfer pump: 0 to 15 GPM (57 LPM)
- Discharge hose: 0.75 in. x 15 ft. Arctic rated hose with static ground wire
- Nozzle: 0.75 in. automatic diesel cold weather nozzle
- Thread type: 0.75 in. multi-plane swivel
- 18 ft. long cable
- Bare leads
- Duty cycle of the fuel pump: 30 minutes
- Suction lift: 8 ft.
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 20A |
| Body Materials | Cast iron |
| Compatible Fluids | Diesel, Gasoline, Biodiesel, Mineral Spirits |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Self-Priming |
| Horsepower | 0.25 HP |
| Hose Diameter | 3/4 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Industrial, Commercial, Residential |
| Maximum Flow Rate | 15 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 105°F |
| Minimum Operating Temperature | -17°F |
| Power Cord Length | 18 ft. |
| Power Type | 12 Volt |
| Product Height | 9 in. |
| Product Length | 5.75 in. |
| Product Weight | 19.3 lb. |
| Product Width | 13 in. |
| Voltage | 12V |
| Warranty | Limited Lifetime |
| Manufacturer Part Number | FR1210HARC |
