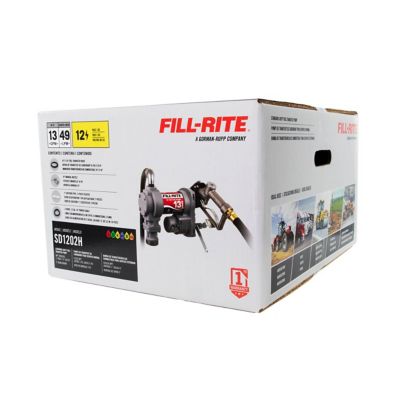

Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle, 13 GPM, SD1202H
Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle, 13 GPM, SD1202H
Item # 3950725
$419.99
Add a protection plan
Powersport plans are not available in CA.
Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle, 13 GPM, SD1202H
Item # 3950725
$419.99
Add a protection plan
Powersport plans are not available in CA.
The Fill-Rite 1/4 HP 12VDC Fuel Transfer Pump with Nozzle is an economy fuel transfer pump. This Fill-Rite pump and accessory bundle comes complete with a hose, a nozzle, a suction pipe and installation components. Made with durable cast iron, this fuel transfer pump provides heavy-duty performance and withstands daily use in mobile tank applications.
- Durable cast-iron construction provides heavy-duty performance and withstands daily use in mobile tank applications
- Adjustable electrical junction box rotates 180 deg. for added flexibility while wiring and improved installation in tight spaces
- Thermally protected motor prevents overheating, ensuring your fuel transfer pump withstands the test of time
- Built-in strainer on the fuel transfer pump filters out particulates and prevents fuel contaminates from damaging your equipment
- On/off switch lever features a cast-metal stopping arm, preventing premature failure from repeated use
- Fuel pump is backed by a limited lifetime warranty to protect your purchase and your business
- Rotary vane pump technology delivers 15 GPM, which is perfect for filling equipment with fuel tanks from 15 gal. to 60 gal.
- Powered by a 12V motor and equipped with a 2 in. bung mount, this pump is ideal for wiring to 12V batteries and installing onto transfer tanks in truck beds
- Designed for daily use with gasoline, diesel, ethanol blends up to E15, biodiesel blends up B20, kerosene and mineral spirits
- Equipped with a 37 ft. discharge head
- Includes a 3/4 in. cast-aluminum manual nozzle and a 15 ft. 12 ga. cable
| Brand | Fill-Rite |
|---|---|
| Country of Origin | Made in USA |
| AC or DC Powered | DC |
| Amperage | 20A |
| Body Materials | Cast Iron |
| Compatible Fluids | Diesel |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 0.75 in. |
| Duty Cycle | 30 min. |
| Features | Compatible with Diesel,Gasoline,Biodiesel up to B20,Mineral Spirits |
| Horsepower | 0.25 hp |
| Hose Diameter | 0.75 in. |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1 in. |
| Intended Use Grade | Residential |
| Maximum Flow Rate | 13 GPM |
| Maximum Head Lift | 8 ft. |
| Maximum Operating Pressure | 16 PSI |
| Maximum Operating Temperature | 105 deg. |
| Minimum Operating Pressure | 0 PSI |
| Minimum Operating Temperature | -17 deg. |
| Power Cord Length | 15 ft. |
| Power Type | 12 Volt |
| Product Height | 8.5 in. |
| Product Length | 6.5 in. |
| Product Weight | 18 lb. |
| Product Width | 13 in. |
| Voltage | 12V |
| Warranty | 1 Year |
| Manufacturer Part Number | SD1202H |
