ECO-FLO Products Inc. 1/2 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
$449.99
ECO-FLO Products Inc. 1/2 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
ECO-FLO Products Inc. 1/2 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
Item # 116837199
$449.99
or
or
Add this item to unlock free delivery!
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
ECO-FLO Products Inc. 1/2 HP 230V Electric 4 in. Submersible Deep Well Pump, 10 GPM, 2-Wire
Item # 116837199
$449.99
or
or
$38/mo.† suggested payments with 12 Months Financing or earn $22 in Rewards+ on this purchase.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.

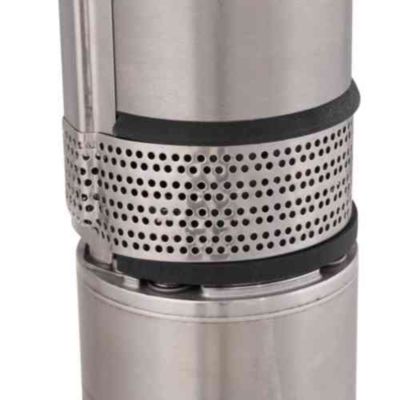

The ECO-FLO Products Inc. 4 in. Submersible Deep Well Pump features a 1-1/4 in. FNPT discharge connection and includes a built-in check valve that provides smooth water passage for maximum efficiency. The well pump replacement offers a self-healing resin system and hermetically sealed windings. The stainless-steel pump housing offers maximum protection against corrosion.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Stainless-steel deep well pump shaft is precision-ground for exact bearing fit and straightness
- Precision-molded impellers and diffusers
- Stainless-steel pump housing for maximum protection against corrosion
- Stainless-steel splined shaft
- Well pump replacement with hermetically sealed windings
- Self-healing resin system
- Integrated check valve
- Kingsbury-type thrust bearing
- Pressure equalizing diaphragm
- Removable water-bloc lead connector
| Brand | ECO-FLO Products Inc. |
|---|---|
| Country of Origin | Imported |
| Amperage | 4.3 Amp |
| Body Material | Stainless steel |
| Compatible Pipe Material | Poly, Galvanized steel, PVC |
| Compatible Well Diameter | 4 in. |
| Discharge Connection | Threaded Female |
| Discharge Diameter | 1-1/4 in. |
| Discharge Rate at 0 ft. | 10 gpm |
| Discharge Rate at 25 ft. | 11 gpm |
| Discharge Rate at 50 ft. | 11 gpm |
| Features | 1 1/4 in. FNPT discharge connection includes built-in check valve. Stainless steel pump shaft is precision ground for exact bearing fit and straightness. Stainless steel inlet screen. |
| Head Pressure | 40 PSI |
| Horsepower | 0.5 hp |
| Impeller Material | Plastic |
| Inlet Connection | Threaded Female |
| Inlet Diameter | 1.25 in. |
| Maximum Flow Rate | 10 GPM |
| Maximum Head Lift | 100 ft. |
| Maximum Operating Depth | 100 ft. |
| Maximum Operating Temperature | 104 deg. F |
| Minimum Operating Temperature | 32 deg. F |
| Power Cord Length | 0 ft. |
| Power Type | Electric |
| Product Height | 24 in. |
| Product Length | 4 in. |
| Product Weight | 30.23 lb. |
| Product Width | 4 in. |
| Motor Type | CSIR |
| Voltage | 230v |
| Warranty | 3 Year |
| Manufacturer Part Number | EFSUB5-122 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Is this 115v or 230v?
2 years ago1 Answer
- A: For such a specific inquiry, please reach out to the manufacturer at ***ECO-FLO*** https://ecofloproducts.com/support/ OR CALL (877) 326-35612 years agoHelpful?
Q: Which pump is a 3 wire
4 years ago1 Answer
- A: For additional product support, please contact the manufacture. 1-877 326-35614 years agoHelpful?
Q: is ground wire neccesary
5 years ago1 Answer
- A: For additional product support, please contact the manufacture. 1-877 326-35615 years agoHelpful?
Q: Is pump a 2 wire
6 years ago1 Answer
- A: Thank you for your question! This model is a 2-wire pump.5 years agoHelpful?
Q: How many gallons per minute or per hour
7 years ago1 Answer
- A: There are a variety of variables that go into what the GPH or GPM would be for any pump. There is additional information at www.ecofloproducts.com or you could call our customer service team at 877-326-3561 who would help get you set up with the correct pump for your needs. Thanks.7 years agoHelpful?
Q: Is it 3 or 4 wire?
8 years ago1 Answer
- A: Rock1961 This model is a 2-wire pump. Thanks Customer Service8 years agoHelpful?
Q: What size breaker I need
9 years ago1 Answer
- A: It requires a 20amp breaker.9 years agoHelpful?
Q: what is the width of the pump itself?
9 years ago1 Answer
- A: 4 inches.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: Is this 115v or 230v?
2 years ago1 Answer
- A: For such a specific inquiry, please reach out to the manufacturer at ***ECO-FLO*** https://ecofloproducts.com/support/ OR CALL (877) 326-35612 years agoHelpful?
Q: Which pump is a 3 wire
4 years ago1 Answer
- A: For additional product support, please contact the manufacture. 1-877 326-35614 years agoHelpful?
Q: is ground wire neccesary
5 years ago1 Answer
- A: For additional product support, please contact the manufacture. 1-877 326-35615 years agoHelpful?
Q: Is pump a 2 wire
6 years ago1 Answer
- A: Thank you for your question! This model is a 2-wire pump.5 years agoHelpful?
Q: How many gallons per minute or per hour
7 years ago1 Answer
- A: There are a variety of variables that go into what the GPH or GPM would be for any pump. There is additional information at www.ecofloproducts.com or you could call our customer service team at 877-326-3561 who would help get you set up with the correct pump for your needs. Thanks.7 years agoHelpful?
Q: Is it 3 or 4 wire?
8 years ago1 Answer
- A: Rock1961 This model is a 2-wire pump. Thanks Customer Service8 years agoHelpful?
Q: What size breaker I need
9 years ago1 Answer
- A: It requires a 20amp breaker.9 years agoHelpful?
Q: what is the width of the pump itself?
9 years ago1 Answer
- A: 4 inches.9 years agoHelpful?
