Water Source Well System Pressure Switch, 40/60 PSI
$42.99
Water Source Well System Pressure Switch, 40/60 PSI
Water Source Well System Pressure Switch, 40/60 PSI
Item # 102809699
Stocked & Ready
$42.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Water Source Well System Pressure Switch, 40/60 PSI
Item # 102809699
Stocked & Ready
$42.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 8/9/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

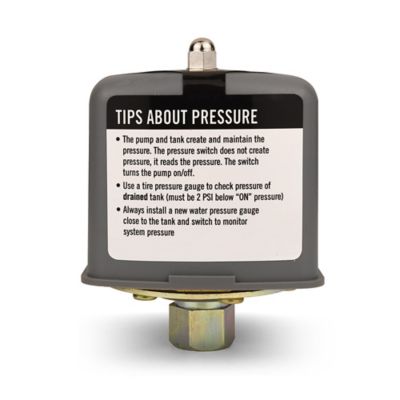

This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 40 PSI (factory set) and stops at 60 PSI (factory set). This well pump pressure switch is to be used with submersible well or jet pumps. It can be wired 115 volt or 230 volt. This water pump pressure switch must be used in conjunction with a well pressure tank. The air pressure in the well tank, when empty of all water, must be set to 38 PSI, or the switch will not operate properly.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Signals the pump to start when the water system drops to 40 PSI (factory set) and stops at 60 PSI (factory set)
- Well pump pressure switch can be wired 115 volt or 230 volt
- For use with submersible well or jet pumps (that can create up to 60 pounds of pressure)
- Motor wires are connected to the 2 middle posts (color does not matter)
- Breaker box wires are connected to 2 outside posts (color does not matter)

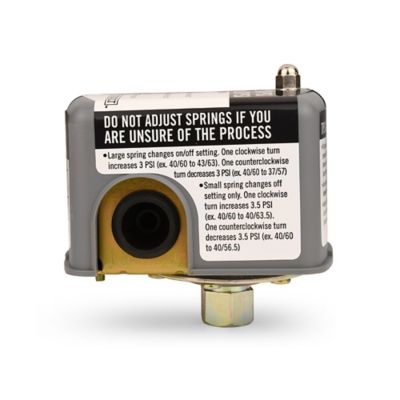

- 2-spring design of water pump pressure switch allows for adjustment of cut-in and cut-out pressure settings
- Adjustments to springs should only be made by users with good knowledge of well systems
- Tank must be in good condition in order for this to work properly
| Brand | Water Source |
|---|---|
| Country of Origin | Imported |
| Compatibility | For use with submersible well pumps or as a replacement switch |
| Package Quantity | 1 |
| Primary Color | Gray |
| Primary Material | Steel |
| Product Height | 3.95 in. |
| Product Length | 3.95 in. |
| Product Weight | 0.88125 lb. |
| Product Width | 3,75 in. |
| Pump Accessory Type | Switches |
| Manufacturer Part Number | PS4060 |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Who makes these switches
5 months ago1 Answer
- A: Hello, thank you for your question. This pressure switch is made and sold under the Water Source brand. We recommend reaching out to Water Source directly for more information about manufacturing.5 months agoHelpful?
Q: Is this a 1/4” npt
7 months ago1 Answer

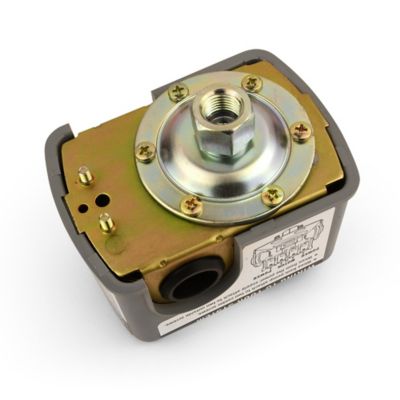

- A: Yes, the Water Source Well System Pressure Switch, 40/60 PSI features a 1/4" NPT connection.7 months agoHelpful?
Q: Can this switch be adjusted to 60/80 psi?
a year ago1 Answer
- A: Hi, This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 40 PSI (factory set) and stops at 60 PSI (factory set).a year agoHelpful?
Q: How high can you set the cut out pressure
2 years ago1 Answer
- A: Hi, This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 40 PSI (factory set) and stops at 60 PSI (factory set).2 years agoHelpful?
Q: will this pressure switch work on a 3hp pump
4 years ago1 Answer
- A: This pressure switch is used with submersible well pumps or as a replacement switch. For additional product support, please contact 800-346-7611.4 years agoHelpful?
Q: My pressure switch got fried and I can’t tell where the wires go on the new one. Can you tell me where the three wires go ??
4 years ago1 Answer
- A: For technical support, please contact 800-346-7611.4 years agoHelpful?
Q: What is the color order on the wiring for the pressure shorts
4 years ago1 Answer
- A: For additional product support, please contact 800-346-7611.4 years agoHelpful?
Q: Will this work on a master plumber well pump
6 years ago1 Answer
- A: Yes this pressure switch will work with any brand pump. Remember to set the air in your well tank to 38PSI. If you have questions please call us at 800-346-7611.6 years agoHelpful?
Q: what is the difference between low water pressure switch and pressure switch?
7 years ago1 Answer
- A: This item does not feature the low-level cut-off arm that automatically shuts off a well pump when there is a dramatic decrease in pressure, such as a leak in the discharge pipes or a faulty pressure tank. For this feature please see item SKU # 102809799 Water Source Well System Low Cut-Off Pressure Switch, 30/50.7 years agoHelpful?
Q: What is the difference between 20/40 and 30/50?
7 years ago1 Answer
- A: The difference between the switches are the cut in and out ranges. 20/40 and 30/50 switches are generally used in jet pump operations and 40/60 switches are used mainly with submersible pumps because jet pumps have a hard time getting up to 60 psi.7 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 10 Questions
Newest questions
Q: Who makes these switches
5 months ago1 Answer
- A: Hello, thank you for your question. This pressure switch is made and sold under the Water Source brand. We recommend reaching out to Water Source directly for more information about manufacturing.5 months agoHelpful?
Q: Is this a 1/4” npt
7 months ago1 Answer
- A: Yes, the Water Source Well System Pressure Switch, 40/60 PSI features a 1/4" NPT connection.7 months agoHelpful?
Q: Can this switch be adjusted to 60/80 psi?
a year ago1 Answer
- A: Hi, This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 40 PSI (factory set) and stops at 60 PSI (factory set).a year agoHelpful?
Q: How high can you set the cut out pressure
2 years ago1 Answer
- A: Hi, This Water Source Well System Pressure Switch signals the pump to start when the water system drops to 40 PSI (factory set) and stops at 60 PSI (factory set).2 years agoHelpful?
Q: will this pressure switch work on a 3hp pump
4 years ago1 Answer
- A: This pressure switch is used with submersible well pumps or as a replacement switch. For additional product support, please contact 800-346-7611.4 years agoHelpful?
Q: My pressure switch got fried and I can’t tell where the wires go on the new one. Can you tell me where the three wires go ??
4 years ago1 Answer
- A: For technical support, please contact 800-346-7611.4 years agoHelpful?
Q: What is the color order on the wiring for the pressure shorts
4 years ago1 Answer
- A: For additional product support, please contact 800-346-7611.4 years agoHelpful?
Q: Will this work on a master plumber well pump
6 years ago1 Answer
- A: Yes this pressure switch will work with any brand pump. Remember to set the air in your well tank to 38PSI. If you have questions please call us at 800-346-7611.6 years agoHelpful?
Q: what is the difference between low water pressure switch and pressure switch?
7 years ago1 Answer
- A: This item does not feature the low-level cut-off arm that automatically shuts off a well pump when there is a dramatic decrease in pressure, such as a leak in the discharge pipes or a faulty pressure tank. For this feature please see item SKU # 102809799 Water Source Well System Low Cut-Off Pressure Switch, 30/50.7 years agoHelpful?
Q: What is the difference between 20/40 and 30/50?
7 years ago1 Answer
- A: The difference between the switches are the cut in and out ranges. 20/40 and 30/50 switches are generally used in jet pump operations and 40/60 switches are used mainly with submersible pumps because jet pumps have a hard time getting up to 60 psi.7 years agoHelpful?
