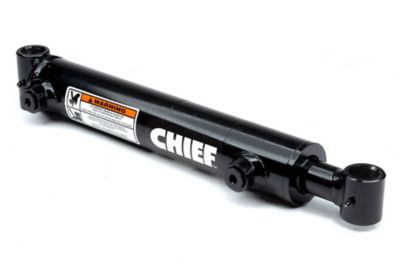

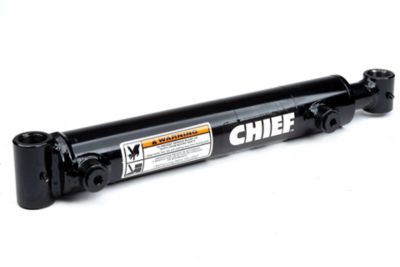

Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter

Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter

Item # 130744999

Chief Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter
Chief Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter
$219.99
or
or

Add this item to unlock free delivery!

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter

Item # 130744999

Chief Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter
Chief Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder, 1.25 in. Rod Diameter

$219.99
or
or
financeCard Logo
$37/mo.†  suggested payments with 6 Months Financing or earn $10 in Rewards+ on this purchase.

Add this item to unlock free delivery!

This item is available online only

Delivery to

Free standard delivery on online footwear & Clothing purchases of $49 and over.

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

The Chief 2 in. Bore x 14 in. Stroke WT Welded Cylinder is a high-quality welded hydraulic cylinder designed for heavier loads. The rod and base ends of the hydraulic cylinder are welded cross-tubes with grease zerks. Designed for performance, it has a heavy-duty piston as well as a piston stem complete with wear rings to reduce friction, and the screw-in gland is removable from the rod end.

  • Welded hydraulic cylinder is intended to be used in double-acting applications
  • Piston: ductile iron with wear ring(s)
  • Gland: ductile iron, screw-in design with wear ring
  • Tube: precision-honed steel
  • Rod: ground and polished chromed steel, minimum 75,000 PSI yield
  • Butt plate: steel
  • End mounts: steel cross-tubes with grease zerk
  • Spacer tube: steel on 48 in. stroke and above
  • Gland seal: polyurethane U-cup
  • Wiper: polyurethane
  • Piston seal: 755 Hallite with wear ring(s)
  • All other seals on the hydraulic cylinder are selected and designed for maximum life
  • Measures 21 in. retracted and 35 in. extended
  • Column load: 9,420 lb.
  • Pin diameter of 1 in. and rod diameter of 1.25 in.

Q&As

1 - 2 of 2 Questions

Q: Will this fit on a 13 1/8 stroke an b 20 5/8 retracted an 33 3/4 extended.. and pins are 1 inch

2 years ago
1 Answer
  • A: Please contact the product experts at Bailey Hydraulics for assistance with this question and for finding the best product to match your specific specifications: 1-800-800-1810
    2 years ago
    Helpful?

Q: What is the true EXTENDED Length? It's impossible for it to be as listed (14") when the Stroke is 14" and the retracted length is 21".

4 years ago
1 Answer
  • A: Extended length is 35.
    4 years ago
    Helpful?
