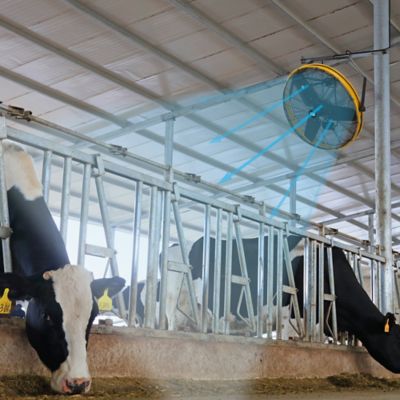

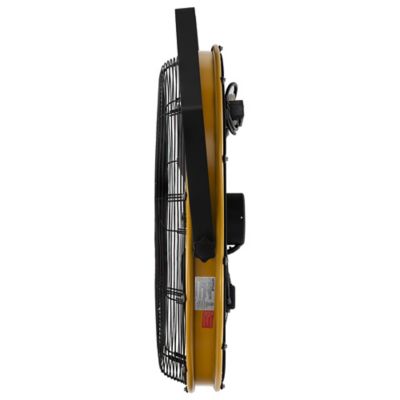

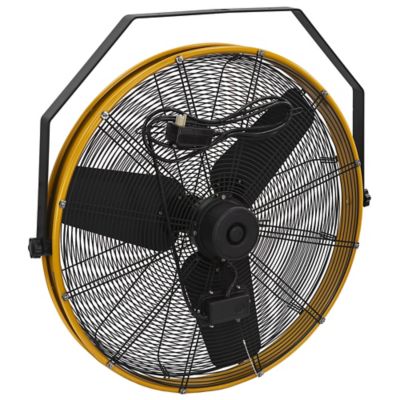

HVOD-30S-NG is an 30-inch high-velocity shroud wall/ceiling fan, designed for superior performance both outdoors and indoors. Ideal for use in barns, warehouses, greenhouses, and workshops, this fan features a weather-rated, heavy-duty, fully enclosed motor with permanently lubricated dual ball bearings to prevent dust accumulation. Its all-metal cage and industrial-grade blades ensure durability, while the 3-speed pull chain (low, medium, and high) allows for customizable airflow. The fan includes a hanging bar with an adjustable tilt for precise 360-degree air movement, making it easy to mount on a wall or ceiling. CETL certified and meeting OSHA safety standards, it comes with a 9.5 ft. power cord and cord wrap, GFCI plug protection, and is rated for indoor and outdoor use.Fan Diameter: 33" / Blade Diameter: 30"
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on staying cool in the heat? Check out our guide on cooling strategies during extreme heat in the product documents section.
- Weather-rated for outdoor, ideal use in barns, Warehouses, And Outdoors
- Heavy-duty, permanently lubricated dual ball bearing fully enclosed motor design prevents dust accumulation inside the motor housing
- All-metal cage with Industrial grade blades
- 3-speed pull chain (low, medium, and high fan speeds)
- Hanging bar that offers adjustable tilt, allowing you to mount the fan on either a wall or ceiling and direct the angle of airflow
- 360 tilt for precise air movement
- CETL Certified and meets OSHA safety standards
- 9.5 Ft. power cord and cord wrap
- GFCI plug protection, Indoor/Outdoor rated, greenhouse/livestock/barn use
| Brand | Caterpillar |
|---|---|
| Country of Origin | Imported |
| Air Current Rating | 8900 CFM |
| Blade Diameter | 30 in. |
| Blade Diameter Range | 26-30 inches |
| Blade Length | 30 in. |
| Blade Material | Aluminum |
| Cord Length | 9.5 ft. |
| Cord Length Range | 6-10 feet |
| Fan Airflow Volume | 9000 CFM |
| Fan Diameter | 33 in. |
| Fan Features | Corrosion-Resistant, Weather-Resistant |
| Fan Sound Level | Standard |
| Grille Material | Steel |
| Indoor/Outdoor | Indoor and Outdoor |
| Mounting Location | Other |
| Number Of Fan Blades | 3 |
| Number Of Light Sockets | 0 |
| Number of Speeds | 3 |
| Power Rating | 120 V |
| Power Type | Electric |
| Primary Material | Steel |
| Product Height | 37 in. |
| Product Length | 37 in. |
| Product Weight | 47.7 lb. |
| Product Width | 10 in. |
| Recommended Room Size | 3,600 sq. ft. |
| Tilt Angle | 360 deg. |
| Warranty | 3 |
| Wattage | 300 W |
| Manufacturer Part Number | CF-HVOD-30S-NG |
Q: Is this fan waterproof?
a year ago- A: Hi, No, while the fan is IPX4 rated, it's not fully waterproof. The IPX4 rating means it's protected against splashing water, but not against submersion or prolonged exposure to heavy rain or water spraya year agoHelpful?
Q&As
Q: Is this fan waterproof?
a year ago- A: Hi, No, while the fan is IPX4 rated, it's not fully waterproof. The IPX4 rating means it's protected against splashing water, but not against submersion or prolonged exposure to heavy rain or water spraya year agoHelpful?
