Carry-On Trailer Spring Tie Plates, 3,500 lb. Capacity, 2-Pack
Carry-On Trailer Spring Tie Plates, 3,500 lb. Capacity, 2-Pack
Item # 175342
Stocked & Ready
$29.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Carry-On Trailer Spring Tie Plates, 3,500 lb. Capacity, 2-Pack
Item # 175342
Stocked & Ready
$29.99
New Cardmembers earn a $20 Reward‡ with qualifying purchase of $20 or more plus earn 5% in Rewards+ on this purchase. Valid through 9/20/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

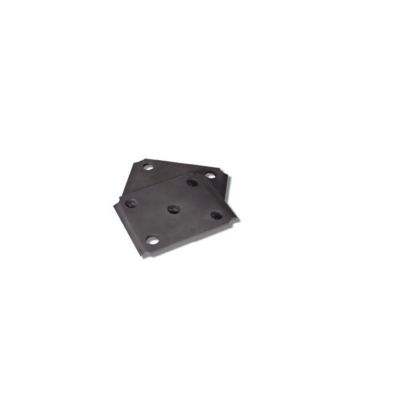

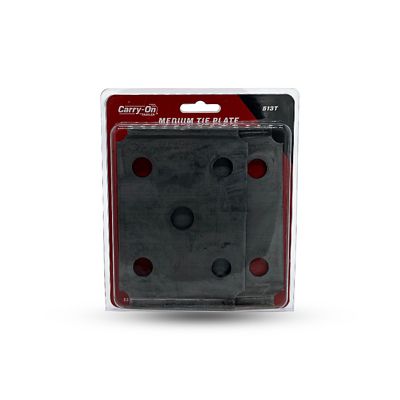

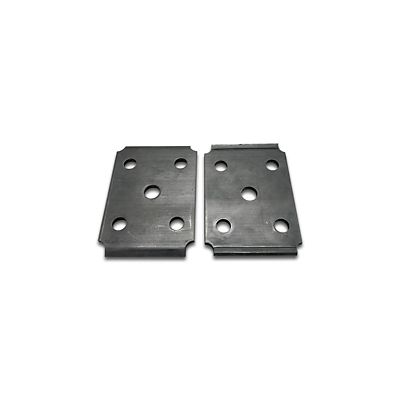

The Carry-On Trailer Spring Type Tie Plate helps hold the springs to the axle. This tie plate fits most 3,500 lb. rated axles and 2-3/8 in. dia. axle tubes. The spring type tie plate can be used with both square and round U-bolts. Each pack includes two tie plates. Use with 515T U-bolt kit.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Use the spring type tie plate with U-bolts both square and round
- Tie plate helps hold the springs to the axle
- Fits most 3,500 lb. rated axles
- Compatible with 2-3/8 in. dia. axle tubes
- Use the tie plate with the 515T U-bolt kit
- Pack of two spring type tie plates
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Axle Capacity | 3,500 lb. |
| Center Of Spring Eye to Center Of Spring Eye Length | 0 in. |
| Compatibility | 515T U-bolt kit |
| End Type | None |
| Leaf Thickness | 0 in. |
| Maximum Weight Capacity | 3,500 lb. |
| Mounting Hole Inner Diameter | 0 in. |
| Number Of Leaves | 0 |
| Package Quantity | 2 |
| Primary Material | Steel |
| Product Height | 6.8 in. |
| Product Length | 1 in. , |
| Product Weight | 2.65 lb. |
| Product Width | 5.9 in. |
| Spring Capacity Per Pair | 0 lb. |
| Manufacturer Part Number | 513T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Will this plate fit on a 2 inch spring?
5 months ago2 Answers
- A: No it will not fit. This tie plate is sized for the 1 3/4" wide leaf spring.5 months agoHelpful?
Q: What is the measurement from center of the holes
5 years ago1 Answer
- A: The measurement is 2 7/8” center to center parallel to the spring and 2 17/32” center to center perpendicular to the spring. The holes are 17/32” in diameter. hope this answers your questions - we can be reached at customer.service@carry-ontrailer.com thank you5 years agoHelpful?
Q: Do you get 2 plates or 1 ?
9 years ago1 Answer
- A: There are 2 tie plates in the package.9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 3 of 3 Questions
Newest questions
Q: Will this plate fit on a 2 inch spring?
5 months ago2 Answers
- A: No it will not fit. This tie plate is sized for the 1 3/4" wide leaf spring.5 months agoHelpful?
Q: What is the measurement from center of the holes
5 years ago1 Answer
- A: The measurement is 2 7/8” center to center parallel to the spring and 2 17/32” center to center perpendicular to the spring. The holes are 17/32” in diameter. hope this answers your questions - we can be reached at customer.service@carry-ontrailer.com thank you5 years agoHelpful?
Q: Do you get 2 plates or 1 ?
9 years ago1 Answer
- A: There are 2 tie plates in the package.9 years agoHelpful?
Similar Items
-
-
-
-
-
-
-
-
-
Top Rated
-
-
-
Items You May Like
-
-
-
Top Rated
-
-
-
-
-
-
-
Top Rated
-
-
Customers Also Bought
-
-
-
-
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Reviews
1 to 4 of 7 Reviews .
1 – 4 of 7 Reviews
Most Recent
Review 1
4 out of 5 stars.
A bit expensive, but very heavy duty.
3 years ago
My previous 1 star review was based on their lack of information about the hole distance in the product. I purchased it and it will work for my needs, so I'm providing the measurements for the rest of you:
short edge - 3.8"
holes on short edge (inside hole edge to inside hole edge) 1.75"
holes on short edge (outside hole edge to outside hole edge) 2.85"
long edge - 5.4"
holes on long edge (inside hole edge to inside hole edge) - 2.38"
hole diameters (4 corner holes) - .55"
hole diameter (center hole) - .65
holes on long edge (outside hole edge to outside hole edge) 3.49"
thickness .21"
very heavy duty
Sweepstakes EntryYes
Review 1
1 out of 5 stars.
NEED THE DISTANCES BETWEEN THE HOLES!
3 years ago
Without listing the distance between the holes, for both length and width, it's useless to try to see if this will fit my needs
Sweepstakes EntryNo
Nashville
Reviews 6
3 out of 5 stars.
Expensive.
3 years ago
Overpriced and should’ve been included with the u bolts.
No, I do not recommend this product.
Verona, NY
Reviews 5
3 out of 5 stars.
value
4 years ago
Theu worked. Found out later I could have bought them much cheaper elsewhere....
No, I do not recommend this product.
