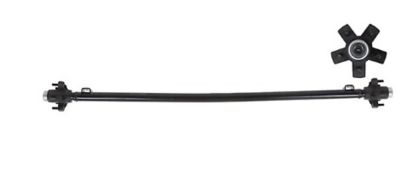

Carry-On Trailer Ez Lube Idler Axle, 3,500 lb. Capacity

Product Rating is 4.6
 4.6  (38)
SKU: 107510599
Enter Zip Code for price More Info

Sale Save Up To

See price at checkout
Pricing Display Information

Financing Available Learn More

Idler axle with a 84 in. hub face and 70 in. spring seat spacing, fits 5-lug wheels with 4.5 in. bolt pattern.

  • Round Steel Tube
  • 3,500 lb. capacity each
  • Easy to grease EZ Lube hub
  • Hub Face Spacing: 84 in.
  • Spring Seat Spacing: 70 in.

Additional Product Information
The quantity requested exceeds available inventory.
Store:Hewitt NJ Change Store
Please lower quantity or check availability at nearby stores
Check availability at nearby stores
Call Store for availability or check availability at nearby stores
Curbside / Pickup In Store
hewitt NJ Change Store
Items Shipped to Store may incur freight charge.
 Available for Pickup Today
Check availability at nearby stores

Curbside / Pickup In Store

hewitt NJ Change Store Item is currently not available for Pickup at this store. Check availability at nearby stores

Standard Delivery

Item is not eligible for Standard Delivery.

Standard Delivery

Item is currently not available for Standard Delivery. Check other delivery options.

Same Day Delivery

Item is currently not available for Same Day Delivery. Check other delivery options.
Curbside / Pickup and Delivery Information Click here for more details...
Add to list

Product Details

Idler axle with a 84 in. hub face and 70 in. spring seat spacing, fits 5-lug wheels with 4.5 in. bolt pattern.

  • Round Steel Tube
  • 3,500 lb. capacity each
  • Easy to grease EZ Lube hub
  • Hub Face Spacing: 84 in.
  • Spring Seat Spacing: 70 in.

Specifications

Specification Description
Brand Carry-On Trailer
Cambered Yes
Frame Width 72 in.
Track Length 70 in.
Inner Bearing Size (ID) 1-2/5 in.
Axle Tube Shape Round
Seal Size (ID) 1-7/10 in.
Hubs Included Yes
Outer Bearing Size (ID) 1-1/16 in.
Overall Length 89-1/2 in.
Manufacturer Part Number 8470ET

Reviews

Carry-On Trailer Ez Lube Idler Axle, 3,500 lb. Capacity is rated 4.6 out of 5 by 38.
Rated 5 out of 5 by from Saved the day!! Worked as expected. Easy to install. Minimal tools needed
Date published: 2020-08-24

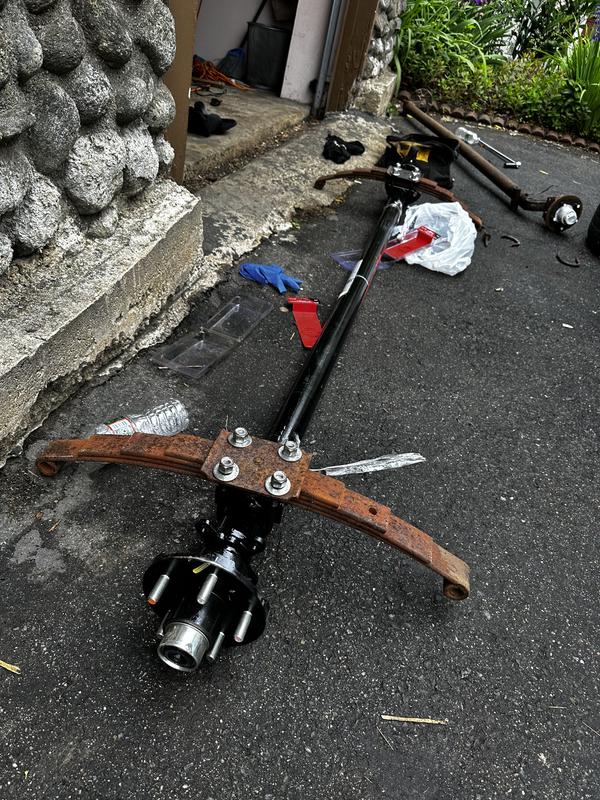

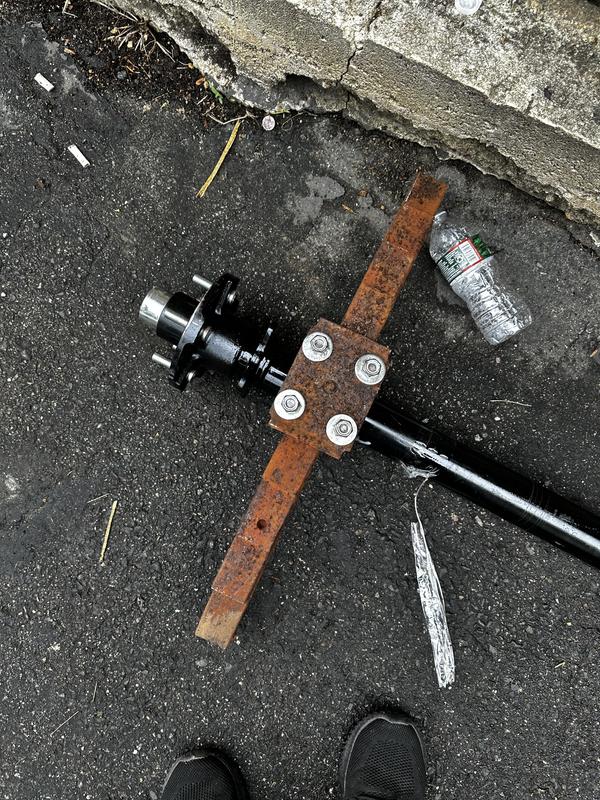

Rated 5 out of 5 by from Replaced boat axle Appears to be well made. Fit was great. I installed axle under boat trailer. I’m not sure how well it will take being in and out of water. I’ll have to keep a close eye on the bearings and grease.
Date published: 2020-08-24
Rated 5 out of 5 by from Nice and easily manuvered Works great for smaller trailers, sidenote though... When you do an rough measure, the inner mounter brackets distance between us very important!!!!
Date published: 2020-08-03
Rated 4 out of 5 by from No lugs Excellent product. But I don’t understand why am axel would be sold without lug nuts.
Date published: 2020-07-24
  • y_2020, m_9, d_24, h_15
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasreviews, tv_15, tr_23
  • loc_en_US, sid_107510599, prod, sort_[SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 3ms
  • REVIEWS, PRODUCT

Questions & Answers

Part number for replacement bearing kit for axle 1075105?

Asked by: JBG2019
the 3K axles will take the bearing kit part# 502 which has the 1 3/8" inner bearing and a 1 1/16" outer bearing in the kit.
Answered by: COT, Customer Care Agent
Date published: 2019-03-30

can an electronic braking system be put on this axle ?

Asked by: alanv
If you are asking about axle 3K8470EZ. Yes, brakes can be added.
Answered by: COT, Customer Care Agent
Date published: 2020-06-05

Can I get a axle with a 5inch bolt  pattern

Asked by: Schmitts 24
are bolt pattern is 5 on 4.5 are you looking for 5 on 5 if so - yes we can special order please contact us at customer.service@carry-ontrailer.com
Answered by: COT, Customer Care Agent
Date published: 2020-09-22

What are the minimum and maximum allowable inches to move the spring mounts on this axle

Asked by: Derb82
The springs mounts are already welded in place on these axles. They are the Dexter Axle recommend distance which should be 29 1/2".
Answered by: COT, Customer Care Agent
Date published: 2019-09-24

Can I make a car trailer with this axle

Asked by: Red 23
8470 axle is 84 inches hub face to hub measurement and 70 inches is the spring seat spacing. You can make all kinds of trailers with this axle.
Answered by: COT, Customer Care Agent
Date published: 2020-06-05

Axle diameter?

Asked by: MaryHadALittleLamb
The 3K Dexter Axle tube should be around 2 3/8" diameter.
Answered by: COT, Customer Care Agent
Date published: 2020-04-11

How to measure my trailers axles to fit this product.

Asked by: Fredx
You would measure from hub face to hub face and spring center to spring center.
Answered by: Samantha C
Date published: 2020-06-27

do you sell a 6 lug axle?

Asked by: KBOSWELL
6 lug axle would have to be special ordered by TSC.
Answered by: COT, Customer Care Agent
Date published: 2019-10-08
  • y_2020, m_9, d_24, h_15CST
  • bvseo_bulk, prod_bvqa, vn_bulk_3.0.12
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_11
  • loc_en_US, sid_107510599, prod, sort_[SortEntry(order=FEATURED, direction=DESCENDING)]
  • clientName_tractorsupply
  • bvseo_sdk, java_sdk, bvseo-4.0.0
  • LOCAL, getContent, 2ms
  • QUESTIONS, PRODUCT

Documents

Attachments (  1 - 1 of 1  )
pdf Carry-On Trailer 8470E Warranty 1
