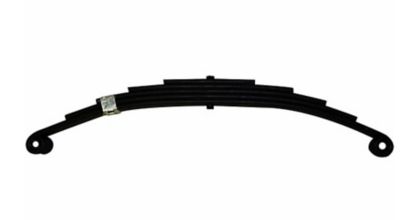

Carry-On Trailer 5-Leaf Eye to Eye Spring, 2,900 lb. Max. Capacity

Shop all Carry-On Trailer

Item # 175014599

Neighbor’s Club Members earn points with purchases.

Shop all Carry-On Trailer

Carry-On Trailer 5-Leaf Eye to Eye Spring, 2,900 lb. Max. Capacity

Item # 175014599

Neighbor’s Club Members earn points with purchases.

The Carry-On Trailer 5-Leaf Eye to Eye Spring delivers long life and a smooth ride for your cargo. The eye to eye spring has a 2,900 lb. maximum capacity. The mounting holes in the 5-leaf eye to eye spring have a 9/16 in. diameter and are 25.25 in. apart. The width of the eye to eye spring is 1-3/4 in.

For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

Eye to eye spring design
5-leaf design
Width of eye to eye spring: 1-3/4 in.
25.25 in. from mounting centers on the eye to eye spring
Mounting hole diameter in the 5-leaf eye to eye spring: 9/16 in.
2,900 lb. maximum capacity per 5-leaf eye to eye spring

Brand	Carry-On Trailer
Country of Origin	Imported
Axle Capacity	0 lb.
Center Of Spring Eye to Center Of Spring Eye Length	25.25 in.
Compatibility	Trailers
End Type	Other
Leaf Thickness	1-34 in.
Maximum Weight Capacity	2,900 lb.
Mounting Hole Inner Diameter	9/16 in.
Number Of Leaves	5
Package Quantity	1
Primary Material	Steel
Product Height	26.5 in.
Product Length	25-1/4 in.
Product Weight	14.2 lb.
Product Width	1-3/4 in.
Spring Capacity Per Pair	5,800 lb.
Manufacturer Part Number	353T

Q&As

1 - 10 of 17 Questions

Q: Does this come with new bushings

3 months ago

1 Answer

A: Yes the leaf spring has new bushings.
3 months ago
Helpful?

Q: Is this only one spring?

9 months ago

1 Answer

A: There are 5 leaf springs that together make this 5 leaf spring.
9 months ago
Helpful?

Q: will this work with the ubolts that come with a 5.5x10 carry-on? what is the depth measurement of spring at mounting hole?. past warranty.

a year ago

1 Answer

A: Hello, thank you for your question. Width of eye to eye spring: 1-3/4 in. 25.25 in. from mounting centers on the eye to eye spring Mounting hole diameter in the 5-leaf eye to eye spring: 9/16 in. For more information, please reach out to Carry-On Trailer directly. ***CARRY-ON TRAILERS*** www.carry-ontrailer.com Phone: (706) 356-5379 Fax: (706) 356-4431 customer.service@carry-ontrailer.com
a year ago
Helpful?

Q: I have a 5.5x10GWPR utility trailer and need a replacement axle Hub to Hub 77 and spring center 64.

a year ago

2 Answers

A: The axle part number is 113k7764. You will need to get Tractor Supply to special order it if the y do not have one on hand, If they do not know how to special order it then please ask them to call Carry-On trailer Customer Service and we will help them place the order. (800) 240-3121 EXT. 1915
a year ago
Helpful?

Q: Will this fit carry on 7by12

2 years ago

1 Answer

A: Sorry but I need more information. single axle or tandem axle? Utility trailer? Dump trailer? Enclosed Cargo trailer?
2 years ago
Helpful?

Q: Are these available in 27 inch center of eye bolt, to center of eye bol?

2 years ago

1 Answer

A: I am sorry we do not have that in a 27" eye to eye centers.
2 years ago
Helpful?

Q: i need to know part numbers to build a complete axle for a trailer using (1) 7258T axle and (2) 253T springs. need shackles, u bolts, and plates to assemble complete.

3 years ago

1 Answer

A: For more specifications, please reach out to Carry-On at 706-356-5379.
3 years ago
Helpful?

Q: I have a 5x8 utility trailer single axle with gate on back. Will the 5 leaf spring bolt to it?

3 years ago

1 Answer

A: Hi, Thanks for your question. I cant accurately answer this question without know the brand of trailer that you have. This item is not listed as a universal item. If your trailer meets the following specifications given for this bolt, it could fit, but we can not make that claim. See below: The mounting holes in the 5-leaf eye to eye spring have a 9/16 in. diameter and are 25.25 in. apart. The width of the eye to eye spring is 1-3/4 in. Please contact the manufacturer of your trailer for more information.
3 years ago
Helpful?

Q: Does this come as a pair or just a single leaf spring?

4 years ago

1 Answer

A: No, it is not a pair.
4 years ago
Helpful?

Q: Can I use these on a 1999 Wilderness travel trailer?

5 years ago

1 Answer

A: if it is the correct application - trailer parts in most cases are universal across different categories of trailers.
5 years ago
Helpful?

1 - 10 of 17 Questions

Items You May Like

Reviews

Rating Snapshot

Select a row below to filter reviews.

105 reviews with 5 stars.

10 reviews with 4 stars.

5 reviews with 3 stars.

0 reviews with 2 stars.

9 reviews with 1 star.

Overall Rating

4.6

32 out of 35 (91%) reviewers recommend this product

Review this Product

Select to rate the item with 1 star. This action will open submission form.

Select to rate the item with 2 stars. This action will open submission form.

Select to rate the item with 3 stars. This action will open submission form.

Select to rate the item with 4 stars. This action will open submission form.

Select to rate the item with 5 stars. This action will open submission form.

Adding a review will require a valid email for verification

price
product availability
heavy-duty
satisfaction
ease of use
application
quality
quick

1 to 4 of 129 Reviews .

1 – 4 of 129 Reviews

Daingerfield, Tx

Review 1

5 out of 5 stars.

Quick and smooth

7 months ago

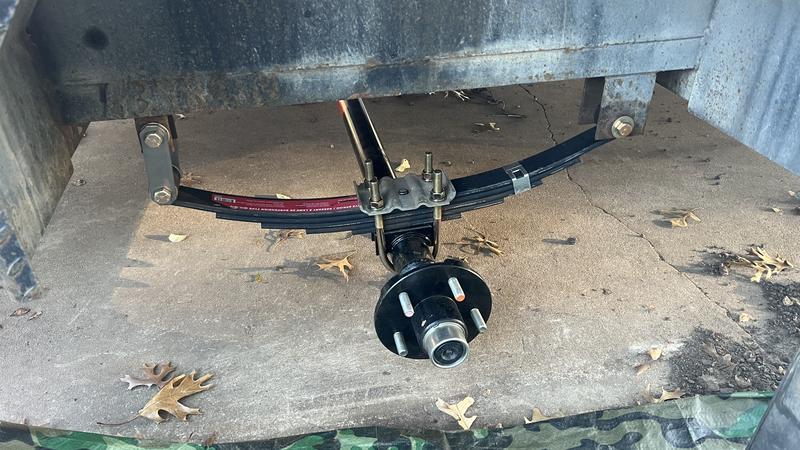

This got my tandem axle flat bed trailer back in service after breaking the old spring. Quick installation and although not rated for what I required, it was what I needed to be functional until the proper replacement could be obtained. The same-day delivery from the local store made the whole process seamless and easy for a busy business owner to get what I ordered.

SweepstakesYes

Yes, I recommend this product.

Response from Carry-On Trailer Customer Service:

6 months ago

Carry-On Trailer Customer Service

Thanks for your kind words and high rating. We are committed to delivering durable, dependable trailer parts and accessories, Carry-OnTrailer

29 Palms Ca

Review 1

5 out of 5 stars.

Very Solid! Has more leafs than factory.

a year ago

Great product so far! With 2900lbs rating, I replaced both of my leaf springs on a Wolfpup RV trailer with an axle rating of 3900lbs. One of the factory leaf springs failed forcing me to replace both of them. I chose these for their weight rating.

SweepstakesYes

Yes, I recommend this product.

Maryland

Review 1

5 out of 5 stars.

Trailer leaf spring

a year ago

Fitted perfectly and was better than the original one

SweepstakesYes

Yes, I recommend this product.

Texas

Review 1

1 out of 5 stars.

Sold separately

a year ago

This is the second time i need a pair of leaf springs, and yet again they only carry one. Im having to search all over for its matching pair. I dont understand why tractor supply only carries one of everything and not a set of everything. Having to sesrch other tractor supply's several towns over is troubling.

SweepstakesYes

Response from Carry-On Trailer Customer Service:

a year ago

Carry-On Trailer Customer Service

You will need to talk with the store manager at the TSC store for their inventory levels. Carry-OnTrailer
