Carry-On Trailer 3-Leaf Eye to Eye Spring, 1,800 lb. Max. Capacity
$79.99
Carry-On Trailer 3-Leaf Eye to Eye Spring, 1,800 lb. Max. Capacity
Carry-On Trailer 3-Leaf Eye to Eye Spring, 1,800 lb. Max. Capacity
Item # 17526199
$79.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
Carry-On Trailer 3-Leaf Eye to Eye Spring, 1,800 lb. Max. Capacity
Item # 17526199
$79.99
New Cardmembers earn a $75 Reward‡ with qualifying purchase of $75 or more plus earn 5% in Rewards+ on this purchase. Valid through 7/12/26.
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

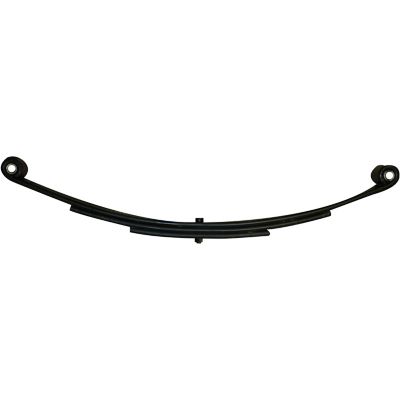

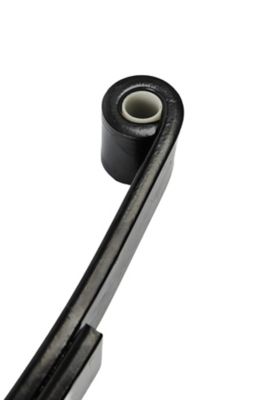

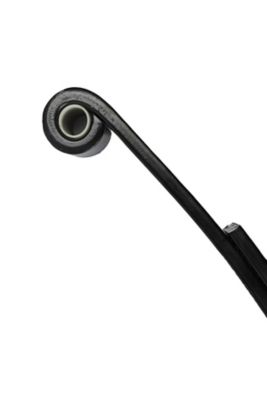

The Carry-On Trailer 3-Leaf Eye to Eye Spring delivers long life and a smooth ride for your cargo. The eye to eye spring has a 1,750 lb. maximum capacity. The mounting holes in the 3-leaf eye to eye spring have a 9/16 in. diameter and are 25.25 in. apart. The width of the eye to eye spring is 1-3/4 in.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Eye to eye spring design
- 3-leaf design
- Width of eye to eye spring: 1-3/4 in.
- 25.25 in. from mounting centers on the eye to eye spring
- Mounting hole diameter in 3-leaf eye to eye spring: 9/16 in.
- 1,750 lb. maximum capacity per 3-leaf eye to eye spring
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Axle Capacity | 1,750 lb. |
| Center Of Spring Eye to Center Of Spring Eye Length | 25.25 in. |
| Compatibility | Trailers |
| End Type | Other |
| Leaf Thickness | 1.75 in. |
| Maximum Weight Capacity | 1,750 lb. |
| Mounting Hole Inner Diameter | 9/16 in. |
| Number Of Leaves | 3 |
| Package Quantity | 1 |
| Primary Material | Steel |
| Product Height | 25.25 in. |
| Product Length | 25-1/4 in. |
| Product Weight | 11 lb. |
| Product Width | 1-3/4 in. |
| Spring Capacity Per Pair | 3,500 lb. |
| Warranty | 1 Year Limited |
| Manufacturer Part Number | 504T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 14 Questions
Newest questions
Q: My axle is 1 1/4" diameter. Will this fit??
3 months ago2 Answers
- A: I cannot say that it will fit. Our axles have spring mounts that tie in with the u-bolts and tie plates to make a secure connection to our axles.3 months agoHelpful?
Q: Will it work for jayco camper , all measurements are right and it is a 3 spring
2 years ago1 Answer
- A: Hello, Thank you for your question. I would need more information about your trailer to confirm compatibility. If the specifications are matching and it is within the 1800 lb. capacity, then it should work for your camper. Please provide more information or contact the manufacturer directly for further assistance: *****CARRY-ON TRAILERS***** Phone: (706) 356-5379 Fax: (706) 356-4431 E-mail: customer.service@carry-ontrailer.com Website: www.carry-ontrailer.coma year agoHelpful?
Q: Are these or the 5 pack springs available with a 27 inch, center of eye bolt to center of eyebolt?
2 years ago1 Answer
- A: I am sorry we do not have that in a 27" eye to eye centers.2 years agoHelpful?
Q: Does this product include necessary bushings for the eye holes?
3 years ago1 Answer
- A: Hi, Thank you for your question. Here is the information I received from the vendor- "The bushings for the eye do come with the leaf spring."3 years agoHelpful?
Q: is this for a pair or a single
5 years ago1 Answer
- A: This product only comes with one spring.5 years agoHelpful?
Q: Do u have a4 leaf 25.25 long
5 years ago1 Answer
- A: For this product the mounting holes in the 3-leaf eye to eye spring have a 9/16 in. diameter and are 25.25 in. apart.5 years agoHelpful?
Q: overslung or underslung? mounting on the axle?
5 years ago1 Answer
- A: For installation instructions. Use the link below. https://youtu.be/UBf7x9y83Ec5 years agoHelpful?
Q: Is this price for a pair of springs or each price
5 years ago1 Answer
- A: This product only comes with one spring.5 years agoHelpful?
Q: I have an older snow mobile trailer that measures 28 inches for eye to eye with 3 springs. Does TSC have them or can they get them?
6 years ago1 Answer
- A: These would have to be special ordered. TSC does not carry the 28" eye to eye springs. They only have the 25.25" eye to eye.6 years agoHelpful?
Q: What is the arch depth/height measurement on these
6 years ago1 Answer
- A: 504T EYE TO EYE SPRING 25.25" EYE TO EYE LENGTH - MAXIMUM CAPACITY 1,750 LBS. PER SPRING.6 years agoHelpful?
1 - 10 of 14 Questions
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 10 of 14 Questions
Newest questions
Q: My axle is 1 1/4" diameter. Will this fit??
3 months ago2 Answers
- A: I cannot say that it will fit. Our axles have spring mounts that tie in with the u-bolts and tie plates to make a secure connection to our axles.3 months agoHelpful?
Q: Will it work for jayco camper , all measurements are right and it is a 3 spring
2 years ago1 Answer
- A: Hello, Thank you for your question. I would need more information about your trailer to confirm compatibility. If the specifications are matching and it is within the 1800 lb. capacity, then it should work for your camper. Please provide more information or contact the manufacturer directly for further assistance: *****CARRY-ON TRAILERS***** Phone: (706) 356-5379 Fax: (706) 356-4431 E-mail: customer.service@carry-ontrailer.com Website: www.carry-ontrailer.coma year agoHelpful?
Q: Are these or the 5 pack springs available with a 27 inch, center of eye bolt to center of eyebolt?
2 years ago1 Answer
- A: I am sorry we do not have that in a 27" eye to eye centers.2 years agoHelpful?
Q: Does this product include necessary bushings for the eye holes?
3 years ago1 Answer
- A: Hi, Thank you for your question. Here is the information I received from the vendor- "The bushings for the eye do come with the leaf spring."3 years agoHelpful?
Q: is this for a pair or a single
5 years ago1 Answer
- A: This product only comes with one spring.5 years agoHelpful?
Q: Do u have a4 leaf 25.25 long
5 years ago1 Answer
- A: For this product the mounting holes in the 3-leaf eye to eye spring have a 9/16 in. diameter and are 25.25 in. apart.5 years agoHelpful?
Q: overslung or underslung? mounting on the axle?
5 years ago1 Answer
- A: For installation instructions. Use the link below. https://youtu.be/UBf7x9y83Ec5 years agoHelpful?
Q: Is this price for a pair of springs or each price
5 years ago1 Answer
- A: This product only comes with one spring.5 years agoHelpful?
Q: I have an older snow mobile trailer that measures 28 inches for eye to eye with 3 springs. Does TSC have them or can they get them?
6 years ago1 Answer
- A: These would have to be special ordered. TSC does not carry the 28" eye to eye springs. They only have the 25.25" eye to eye.6 years agoHelpful?
Q: What is the arch depth/height measurement on these
6 years ago1 Answer
- A: 504T EYE TO EYE SPRING 25.25" EYE TO EYE LENGTH - MAXIMUM CAPACITY 1,750 LBS. PER SPRING.6 years agoHelpful?
1 - 10 of 14 Questions
Similar Items
-
-
-
-
-
-
-
-
-
-
-
Top Rated
-
Top Rated
Items You May Like
-
-
-
-
Top Rated
-
Top Rated
-
-
-
-
-
-
Top Rated
-
Customers Also Bought
Reviews
Summary of Reviews
The leaf springs appear to be a mixed bag in terms of quality and performance. While many customers found the springs to be a good fit and easy to install, some reported issues with the product qualit...
- English
- German
- French
- Spanish
- Portuguese
- Italian
- Korean
- Chinese
- Japanese
- Arabic
Customer Images and Videos
- price
- purchase
- wait time
- product availability
- satisfaction
- convenient
- professionalism
- corrosion
1 to 4 of 94 Reviews .
1 – 4 of 94 Reviews
Most Recent
Georgia
Reviews 12
5 out of 5 stars.
Must have on hand, not available in store!
9 months ago
We keep one of these on hand all the time because when it goes out, it’s only available online. Our trailer is a daily use trailer.
SweepstakesYes
Yes, I recommend this product.
Response from Carry-On Trailer Customer Service:
9 months ago
Carry-On Trailer Customer Service
Thanks for your kind words and high rating. We are committed to delivering durable, dependable trailer parts and accessaries.
Cleveland MS
Review 1
4 out of 5 stars.
Good but pricey
9 months ago
Springs are well made but pricey. I found a pair just like this for much cheaper elsewhere.
SweepstakesYes
No, I do not recommend this product.
Texas
Review 1
1 out of 5 stars.
Unprofessional. Lack of organization and systems
a year ago
I ordered the product via online for “same day delivery”. The product was delivered same day as promised, the completely incorrect product and I needed it for operations that were to take place within my business that day. After chasing down the customer support line for 2 days and finally getting in contact with someone I was informed they never had the part to begin with that’s why they just took my money and sent me what they had. I now have to ship back to them the part and wait for a refund. On top of them order from the main warehouse the part I need and wait a week for it to arrive which is going to cost me money within my business.
No, I do not recommend this product.
Charlotte Michigan
Review 1
5 out of 5 stars.
Fixed my trailer sag and lean
a year ago
Correct spring for my broken trailer in stock and a short drive to get it the easy to repair and back to the correct height and ride.
SweepstakesYes
Yes, I recommend this product.
