Carry-On Trailer Weld-On Spring Hanger Kit
Carry-On Trailer Weld-On Spring Hanger Kit
Item # 109115199
$39.99
Get everything you need
Neighbor’s Club Members earn points with purchases.
$39.99
Shopping at
Grassland (franklin) TN
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.

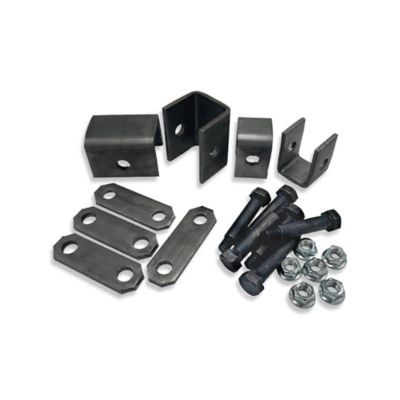

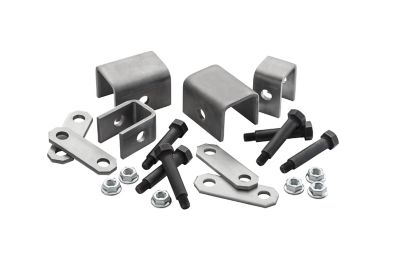

The Carry-On Trailer Weld-On Spring Hanger Kit is used to replace worn out brake drums. Or, the spring hanger kit can be used with an electric brake backing plate to turn an idler axle into a brake axle. The spring hanger kit includes a small hanger, medium hanger, four 2.562 in. shackle links, six 9/16 in. x 3 in. shackle bolts and six nuts.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Use the spring hanger kit to replace worn out brake drums
- Weld-on spring hanger kit includes a small hanger, medium hanger, four 2.562 in. shackle links, six 9/16 in. x 3 in. shackle bolts and six nuts
- Spring hanger kit can be used with electric brake backing plate to turn idler axle into brake axle
| Brand | Carry-On Trailer |
|---|---|
| Country of Origin | Imported |
| Axle Capacity | 0 lb. |
| Center Of Spring Eye to Center Of Spring Eye Length | 0 in. |
| Compatibility | Trailers |
| End Type | Other |
| Leaf Thickness | 0 in. |
| Maximum Weight Capacity | 0 lb. |
| Mounting Hole Inner Diameter | 0 in. |
| Number Of Leaves | 0 |
| Package Quantity | Includes Two Medium Hangers, Two Small Hangers, Four Shackle Nuts, Six Bolts, Six Nuts |
| Primary Material | Steel |
| Product Height | 6.5 in. |
| Product Length | 2.5 in. |
| Product Weight | 6 lb. |
| Product Width | 6 in. |
| Spring Capacity Per Pair | 0 lb. |
| Manufacturer Part Number | 644T |
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: What are the material dimensions of the small hanger?
a year ago2 Answers
- A: The small hanger is 2 1/8" tall, 1 1/2" wide, 1 3/4" leg to leg and .22" thick.11 months agoHelpful?
Q: I bought this kit months ago so I can’t return it. I discovered that the bolts and nuts in this kit have threads that do not screw together smoothly. The nuts are silver color. I get three and half smooth turns before it locks up. Explanation please??
a year ago2 Answers
- A: Without a part number I will assume it must be a lock nut. If you need to screw it tighter and cannot turn the wrench then I would suggest you back them off and get a regular nut with a lock washer and see if that will work.a year agoHelpful?
Q: does this work for 3,500 lb axles?
4 years ago1 Answer
- A: For additional product support, please contact Carry-On at (706) 356-5379.4 years agoHelpful?
Q: Dose this kit come with instructions.
6 years ago1 Answer
- A: 644T Weld on Spring Hanger Kit - HANGER KIT / EYE TO EYE FOR ONE AXLE. These do not come with instructions as it will vary depending on what you are building. The spring seat spacing will determine you axle size you buy, the measurement from eye to eye will determine the size spring you will buy. So the spring hangers will determine the eye to eye measurement and then that will determine your spring and the spring seat spacing will determine the axle.6 years agoHelpful?
Q: What is the material thickness used to make the shackles?
7 years ago1 Answer
- A: Shackle links are 3/16" thick.7 years agoHelpful?
Q: How thick are the walls
8 years ago1 Answer
- A: part# 644 has KIT INCLUDES (1) MEDIUM HANGER, (1) SMALL HANGER, (4) SHACKLE LINKS, (6) BOLTS, (6) NUTS8 years agoHelpful?
Q: Is one kit enough for both springs ?
9 years ago1 Answer
- A: Yes, one kit will be enough for both springs.9 years agoHelpful?
Q: what is the inside measurement of the brakets
9 years ago1 Answer
- A: There are 3 different size Spring Hangers. The large and medium inside measurement is 1.75" and the small inside measurement is 1.25"9 years agoHelpful?
Q&As
Have a question?
Start typing your question and we'll check if it was already asked and answered.
1 - 8 of 8 Questions
Newest questions
Q: What are the material dimensions of the small hanger?
a year ago2 Answers
- A: The small hanger is 2 1/8" tall, 1 1/2" wide, 1 3/4" leg to leg and .22" thick.11 months agoHelpful?
Q: I bought this kit months ago so I can’t return it. I discovered that the bolts and nuts in this kit have threads that do not screw together smoothly. The nuts are silver color. I get three and half smooth turns before it locks up. Explanation please??
a year ago2 Answers
- A: Without a part number I will assume it must be a lock nut. If you need to screw it tighter and cannot turn the wrench then I would suggest you back them off and get a regular nut with a lock washer and see if that will work.a year agoHelpful?
Q: does this work for 3,500 lb axles?
4 years ago1 Answer
- A: For additional product support, please contact Carry-On at (706) 356-5379.4 years agoHelpful?
Q: Dose this kit come with instructions.
6 years ago1 Answer
- A: 644T Weld on Spring Hanger Kit - HANGER KIT / EYE TO EYE FOR ONE AXLE. These do not come with instructions as it will vary depending on what you are building. The spring seat spacing will determine you axle size you buy, the measurement from eye to eye will determine the size spring you will buy. So the spring hangers will determine the eye to eye measurement and then that will determine your spring and the spring seat spacing will determine the axle.6 years agoHelpful?
Q: What is the material thickness used to make the shackles?
7 years ago1 Answer
- A: Shackle links are 3/16" thick.7 years agoHelpful?
Q: How thick are the walls
8 years ago1 Answer
- A: part# 644 has KIT INCLUDES (1) MEDIUM HANGER, (1) SMALL HANGER, (4) SHACKLE LINKS, (6) BOLTS, (6) NUTS8 years agoHelpful?
Q: Is one kit enough for both springs ?
9 years ago1 Answer
- A: Yes, one kit will be enough for both springs.9 years agoHelpful?
Q: what is the inside measurement of the brakets
9 years ago1 Answer
- A: There are 3 different size Spring Hangers. The large and medium inside measurement is 1.75" and the small inside measurement is 1.25"9 years agoHelpful?
