AMA USA Category 3 Hydraulic Top Link, 27-9/16 in. to 36-1/4 in.
5.02 Reviews
Item # 147627999
$629.99
Neighbor’s Club Members earn points with purchases.
AMA USA Category 3 Hydraulic Top Link, 27-9/16 in. to 36-1/4 in.
5.02 Reviews
Item # 147627999
$629.99
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.
Upgrade from a mechanical top link to the AMA USA Category 3 Hydraulic Top Link and get more done! These tractor top links can be adjusted from the operator's seat, so there's no more getting on and off your tractor to make adjustments. The double-acting cylinder on the hydraulic top link is made in Italy and is pressure tested to ensure it'll work right out of the box.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.

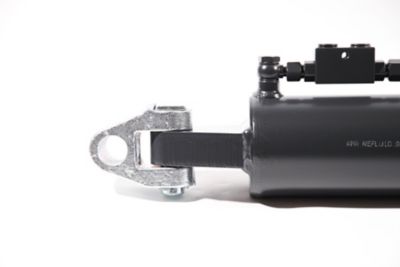

- 1-1/4 in. pin holes on both ends of the hydraulic top link (the piston can be rotated as needed)
- Ball/clevis width measures 2 in. (both ends)
- Offers a minimum to maximum length of 27-9/16 in. to 36-1/4 in.
- Stroke measures 8-3/4 in.; cylinder bore measures 3-15/16 in.; hydraulic top link rod diameter measures 1-3/4 in.
- 1-year manufacturer's warranty guarantees against mechanical defects
- Honed and finished steel tube, chrome-plated and polished rod and top-quality seals
- Pushing/lifting capacity of 26,700 lb./21,300 lb. (estimates based on a working pressure of 2,175 PSI)

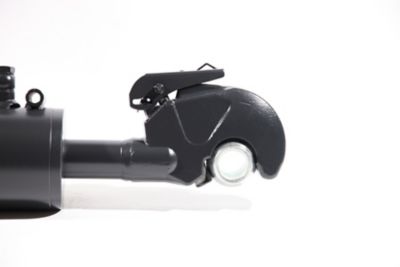

- Implement end features a quick-attach hook to make connecting and disconnecting from your various implements a cinch

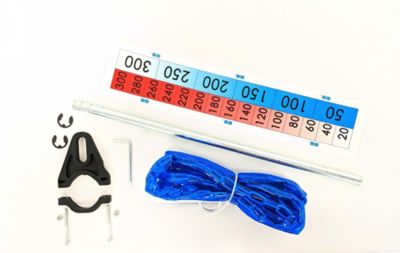

- Comes with a depth decal, depth rod and the hardware necessary to install it
- One end of the depth rod attaches to the piston and the other end attaches to the cylinder
- Once the decal is applied to the cylinder, you can easily tell how far your cylinder is extended based on the location of the rod in relation to the decal
- Hydraulic top link is pressure tested for durability
- Double-piloted check valve and double-acting cylinder
- Ports; 3/8 in. BSP (includes BSP male to NPT male adapters)
Similar Items
-
-
-
-
Top Rated
-
-
Top Rated
-
-
-
-
-
-
Items You May Like
Customers Also Bought
-
-
-
-
-
-
Top Rated
-
-
-
Top Rated
-
-
Top Rated
-
Reviews
1 to 1 of 2 Reviews
1 – 1 of 2 Reviews
Featured
- Verified Product Owner
Review 1
5 out of 5 stars.
Easier way to connect 3 pt.
- Verified Product Owner
4 years ago
Works, makes connecting 3pt equipment much easier. Have yet to pull it hard but by the rating it should be plenty good. We have it on a jd 8225r with a 16 row cultivator. Just one note, we had to modify our pin where the top link connects to the tractor. This has a 1.25 hole the tractor has a 1.5. We made some custom bushings to get it to work.
Yes, I recommend this product.
