YesWelder 110/220V/65 Amps Non-Touch Plasma Cutter Dual Voltage
Item # 231243299
Add this item to unlock free delivery!
Get everything you need
Neighbor’s Club Members earn points with purchases.
Add this item to unlock free delivery!
This item is available online only
Delivery to
Free standard delivery on online footwear & Clothing purchases of $49 and over.
Get everything you need
Neighbor’s Club Members earn points with purchases.
This 65A plasma cutter is equipped with non-touch pilot arc technology for easy operation, and increase the consumables life. It is 110V & 220V dual voltage compatible, up to 65A output, can efficiently cut through rough, painted, and rusty surfaces, and produces minimal slag. The Non-High frequency (blow-back) start comes without interference, is safe and ideal for general use, friendly to the surrounding electrical machines and human health. The Max. rated clean cut thickness can be 5/16"(110V), and 5/8"(220V), the Max. severance thickness is 5/8"(110V), and 63/64"(220V). Suitable to cut stainless steel, alloy steel, mild steel, copper, and aluminum. This cutter is programmed with over-current protection, overload protection, and temperature control to guarantee safety. This cutter is compact and portable design, suitable for professionals and DIY uses.WARNING: This product can expose you to chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. ADVERTENCIA: Este producto puede exponerlo a sustancias qumicas que el Estado de California reconoce como causantes de cncer y defectos de nacimiento u otros daos reproductivos. For more information: www.P65Warnings.ca.gov
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on welders? Check out our guide on welding in the product documents section.
- 110V & 220V 50/60Hz dual voltage compatible

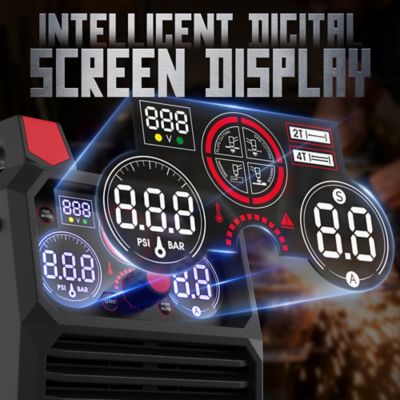

- Large digital display for easy setting and reading the welding data

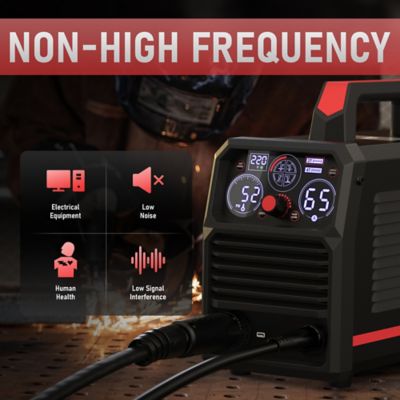

- Non-HF start, friendly to human health
- Non-Touch Pilot Arc

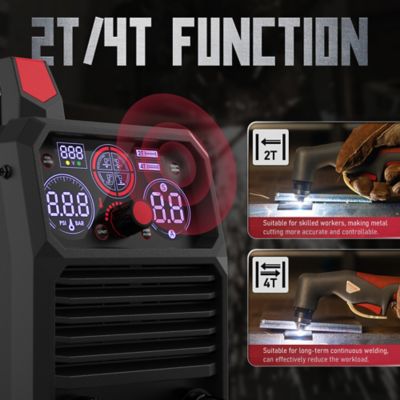

- 2T / 4T optional cutting mode
- Over-current, overload, and temperature control protection
- Compact and portage design
- Powerful clean-cut thickness up to 5/16"(110V), and 5/8"(220V)
- Max. severance thickness is 5/8"(110V), and 63/64"(220V)
- Output current: 10-43A@110V 43.5-58 PSI
- Output current: 10-50A@220V 58-72 PSI
- Air compressor requirement: 4-7CFM@72PSI
| Brand | YesWelder |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 7 CFM |
| Compatible Metal | Stainless Steel, Carbon Steel, Copper, Steel, Aluminum |
| Duty Cycle | 60 Pct. at 65A , 100 Pct. at 45A |
| Features | Non-HF start;Non-Touch Pilot Arc;2T / 4T optional cutting mode;Over-current, overload, and temperature control protection |
| Ground Clamp Length | 9.84 ft. |
| Maximum Amperage Output | 43 A |
| Maximum Cutting Thickness | 9.84 in. |
| Maximum Input Amperage | 63 A |
| Maximum Input Frequency | 60 Hz |
| Maximum Input Voltage | 220 V |
| Maximum Open Circuit Voltage | 265 V |
| Minimum Amperage Output | 10A |
| Minimum Generator Power Required | 10 kW |
| Power Cord Length | 6.56 ft. |
| Product Height | 14.37 in. |
| Product Length | 18.9 in. |
| Product Weight | 21.89 lb. |
| Product Width | 10.71 in. |
| Torch Length | 13.12 ft. |
| Warranty | 1 year |
| Phase | Single Phase |
| Work Cable Length | 164.04 ft. |
| Manufacturer Part Number | CUT-65DS |
Q: How thick of metal can it cut
a year ago- A: Hi Bear, please find the thickness for the metal. Ideal Clean Cut: 5/16"(8mm)@110V, 3/4"(20mm)@220V Maximum Cut: 1/2"(12mm)@110V, 1"(25mm)@220V.a year agoHelpful?
Q: Where is the YesWelder imported from? Dies it come with a PSI air gauge?
a year ago- A: The YesWelder 110/220V/65A Non-Touch Plasma Cutter Dual Voltage CUT-65DS is imported from China. Yes, the YesWelder CUT-65DS Non-Touch Plasma Cutter does have an air pressure gauge.a year agoHelpful?
Q: do i need an air tank
a year ago- A: Hi Jrock, Thanks for reaching out. Yes, the cutter has to connect to a air tank.a year agoHelpful?
Q: What kind of consumables does it use and where does a person buy them?
2 years ago- A: Hi Eric, The consumables are standard parts, can find on the online platforms and in physical stores. You can search or ask for "IPT40 torch tips" in the stores. Thanks.2 years agoHelpful?
Q: What PSI and cm?
2 years ago- A: Per the provided product details: Duty Cycle: 100%@45A; 60%@65A Output current: 25A@110V 50.8PSI Output current: 45A@220V 62-72PSI Air compressor requirement: 5-7CFM@72PSI2 years agoHelpful?
Q&As
Q: How thick of metal can it cut
a year ago- A: Hi Bear, please find the thickness for the metal. Ideal Clean Cut: 5/16"(8mm)@110V, 3/4"(20mm)@220V Maximum Cut: 1/2"(12mm)@110V, 1"(25mm)@220V.a year agoHelpful?
Q: Where is the YesWelder imported from? Dies it come with a PSI air gauge?
a year ago- A: The YesWelder 110/220V/65A Non-Touch Plasma Cutter Dual Voltage CUT-65DS is imported from China. Yes, the YesWelder CUT-65DS Non-Touch Plasma Cutter does have an air pressure gauge.a year agoHelpful?
Q: do i need an air tank
a year ago- A: Hi Jrock, Thanks for reaching out. Yes, the cutter has to connect to a air tank.a year agoHelpful?
Q: What kind of consumables does it use and where does a person buy them?
2 years ago- A: Hi Eric, The consumables are standard parts, can find on the online platforms and in physical stores. You can search or ask for "IPT40 torch tips" in the stores. Thanks.2 years agoHelpful?
Q: What PSI and cm?
2 years ago- A: Per the provided product details: Duty Cycle: 100%@45A; 60%@65A Output current: 25A@110V 50.8PSI Output current: 45A@220V 62-72PSI Air compressor requirement: 5-7CFM@72PSI2 years agoHelpful?
