VIAIR Dual Stealth Black 425C Onboard Air System

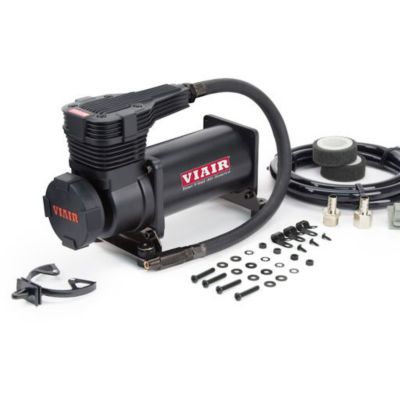

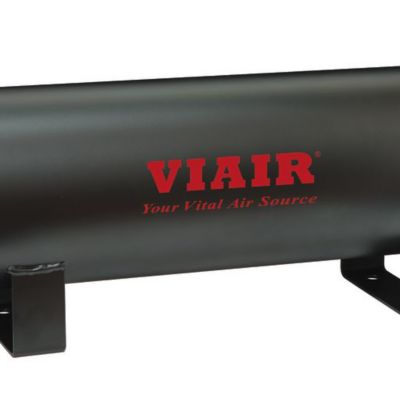

The VIAIR Dual Stealth Black 425C Onboard Air System (OBA) is our fastest filling OBA, featuring our new 425C Gen.2 compressors capable of putting out 4.94 CFM at 0 PSI head pressure. The 425C is our first compressor with duty cycle of 33% at 175 PSI and 50% at 100 PSI. This pre-packaged compressed air solution includes: 2 Platinum or Stealth Black 425C compressors, a 2.5 gal. air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system. The 425C features upgraded internal components that make it a true 175 PSI-rated working pressure pump, and has newly designed thicker vibration isolators that absorb vibration and sound. The modern-inspired head design highlights an eye-catching setup. This Gen. 2 Onboard Air System delivers the vital air source for numerous pneumatic applications.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- 175 PSI maximum working pressure
- 33% duty cycle at 175 PSI
- 4.94 CFM at 0 PSI
- Complete kit ready for install

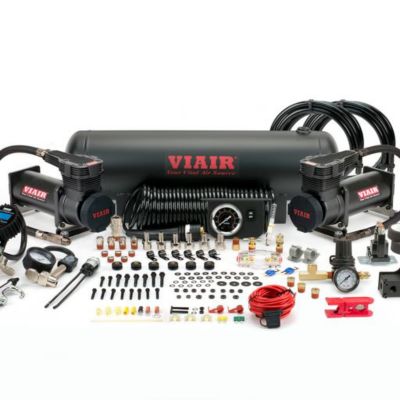

- Includes: 2 Platinum or Stealth Black 425C compressors, a 2.5 gal. air tank, an inline pressure regulator, and all necessary components needed to install a working onboard air system
- Upgraded internal components that make it a true 175 PSI-rated working pressure pump
| Brand | VIAIR |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 4.94 CFM |
| Air Outlet Size | 14 in. NPT |
| Amperage | 60 Amps |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 2.5 gal |
| Compressor Voltage | 12V |
| Drain System | Petcock |
| Drive Type | Direct Drive |
| Features | Fastest filling compressor in the market |
| Number Of Power Speeds | Single |
| Power Type | 12 Volt |
| Primary Color | Black |
| Primary Material | Steel |
| Product Height | 6.59 in. each compressor |
| Product Length | 9.25 in. each compressor |
| Product Weight | 11.1 lb. |
| Product Width | 4.14 in. each compressor |
| Pump Material | Aluminum |
| Tank Style | Horizontal |
| Warranty | 1 Year manufacture defect |
| Manufacturer Part Number | 20175 |
