VIAIR Constant Duty Onboard Air System, 150PSI, PN 10007
VIAIR Constant Duty Onboard Air System, 150PSI, PN 10007
Item # 138385399
$579.99
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.
$579.99
Add a protection plan
Powersport plans are not available in CA & MD.
Neighbor’s Club Members earn points with purchases.

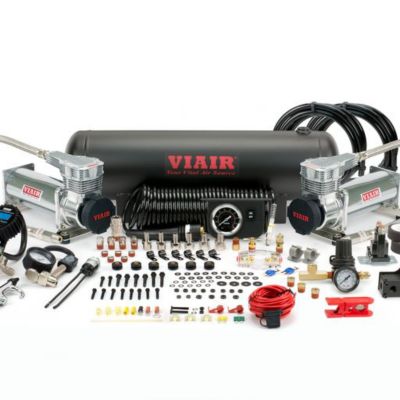

The Viair Constant Duty Onboard Air System is a pre-packaged compressed onboard air system that provides a 100% duty cycle compressors, a 2.5 gal. air tank, and all components needed to install a working system capable of inflating tires. The maximum working pressure of the constant duty onboard air system is 150 PSI. The duty cycle of the onboard air system operates 100% at 100 PSI.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on air compressors? Check out our air compressor FAQs in the product documents section.
- Max working pressure of onboard air system: 150 PSI / 1.80 cfm
- 12 volt constant duty onboard air system
- Duty cycle of onboard air system: 100% @ 100 PSI
- 450C VIAIR Compressor w/Thermal Overload Protector
- Constant duty onboard air system includes a 2.5 gal. VIAIR Air Tank
- 35 ft. Coil Hose with Tire Chuck
- Dash Panel Gauge with ON/OFF Switch
- Pressure Switch with Relay (110 PSI on, 145 PSI off)
- Please Note: Pressure Switch w/Relay is not a sealed unit and should be installed in an area protected from the elements to prevent damage and/or failure. Use thread sealant for proper installation. Thread tape is not recommended. Properly sealed, recommended torque for 1/8 is 10 ~ 11 ft. lb. Recommended torque for 1/4 and 3/8 is 12 ~ 15 ft. lb.
| Brand | VIAIR |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 1.80 CFM |
| Air Outlet Size | 1/4 in. NPT |
| Amperage | 23A |
| Compressor Horsepower | 0.25 HP |
| Compressor Maximum PSI | 150 PSI |
| Compressor Tank Capacity | 2.5 gal |
| Compressor Voltage | 12V |
| Cord Length | 1 ft. |
| Drain System | Included, Manual |
| Drive Type | Direct |
| Features | Https://www.viaircorp.com/oba/oba-constant |
| Hose Fitting Size | 1/4 in. NPT |
| Number Of Power Speeds | Single |
| Power Type | 12 Volt |
| Primary Color | No Color |
| Primary Material | Steel |
| Product Height | 10.0 in. |
| Product Length | 26 in. |
| Product Weight | 34.0 lb. |
| Product Width | 14 in. |
| Pump Material | Metal |
| Stage Type | N/A |
| Tank Fill Time | 3 min. 2 sec. |
| Tank Style | Horizontal |
| Warranty | Https://www.viaircorp.com/warranty |
| Manufacturer Part Number | 10007 |
