VIAIR Heavy-Duty Universal-Mount ADA System, 150PSI
Item # 138387499
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.

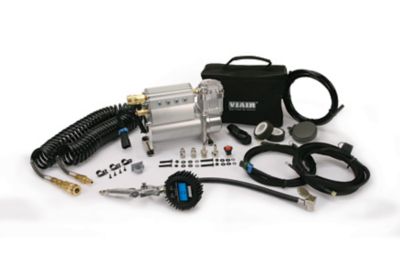

Using a 33% duty cycle 400C compressor, tire inflation or air locker actuation is made possible in a very compact space with the Viair Heavy Duty Universal-Mount ADA System. The ADA system includes an extruded aluminum air tank with 12 ports and two remote mount air filter relocation fittings. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a digital tire inflation kit. Additionally, a wiring harness is included with the universal-mount ADA system to make the installation a plug and play process, with very little install time required.
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- 150 PSI / 2.62 CFM rated
- 12-volt universal-mount ADA system
- Duty Cycle: 33% @ 100 PSI
- Max. working pressure of ADA system: 105 PSI
- Max. amp draw of ADA system: 28 Amps
- 400C Compressor with Thermal Overload Protector
- Extruded Aluminum Air Tank with 12 ports
- Toggle Switch
- Air Line for Remote Mount Air Filter Installation
- Two Remote Mount Air Filter Relocation Fittings
- 1/8 in. NPT Drain Cock
- 1/4 in. NPT Safety Valve
- Eight 1/4 in. NPT Hex Plugs
- 1/4 in. NPT Sealed Pressure Switch (85/105 PSI)
- Two 1/4 in. NPT BSP Adapters
- 1/4 in. NPT Automatic Coupler
- Permanent Magnetic Motor
- Ingress Protection Rating: IP67
- Dimensions: 9 in. L x 4 in. W x 6.75 in. H
- Net weight of ADA system: 10 lb.
- Wiring harness comes with a 30-amp delphi connector set, a 60-amp fuse holder, a 40-amp fuse, two 1/4 in. ring terminals, a 5/16 in. ring terminal and three female spade terminal connectors
- Digital tire inflation kit includes a 30 ft. inflation hose with automatic couplers and a digital tire inflation gun
