Trailer Valet 5,000 lb. TVJX Drill-Powered Side-Mount Jack with Wheel
Item # 240932199
Sale
Was$219.99
Save $22.00
Neighbor’s Club Members earn points with purchases.
Trailer Valet 5,000 lb. TVJX Drill-Powered Side-Mount Jack with Wheel
Item # 240932199
Sale
Was$219.99
Save $22.00
This item is available online only
Delivering to
37027
Neighbor’s Club Members earn points with purchases.

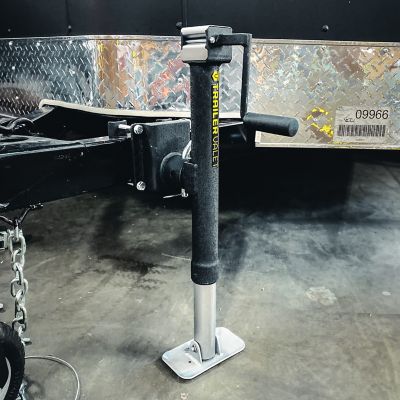

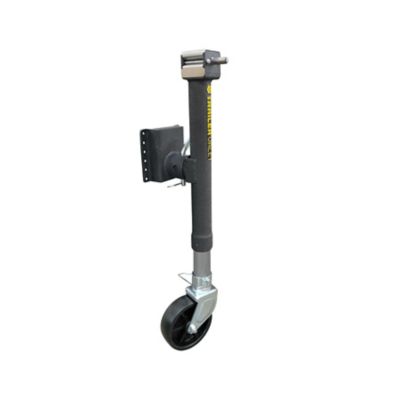

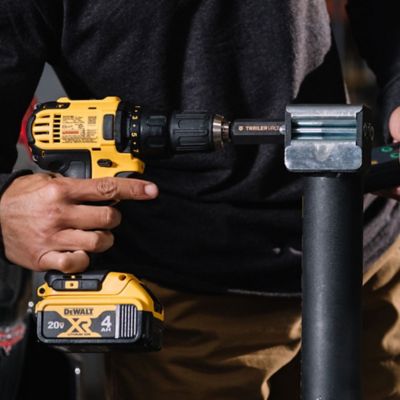

It's time to replace your trailer's jack with something better, faster, and stronger: the Trailer Valet JX Side Mount Jacks with Wheel. Although they can raise and lower with the built-in manual crank, they have a faster option: you can use any 20-24V compact drill to work these trailer jacks. Patented, internal gear material delivers better efficiency and less heat retention. The protective, smooth-gliding sleeve fitting prolongs the life of these aftermarket trailer accessories. These Trailer Valet jacks add a weather-resistant shield and wrinkle powder coating for long-lasting outdoor protection. Includes strong pipe-mount bracket and trailer-jack drill attachment. Retracted Height: 23 inch. Extended Height: 37 inch. Total Extension: 14 inch. NOTE: Using the Wheel Attachment instead of the Footplate reduces the static weight capacity to 1,200 lbs.One Year Limited Manufacturers Warranty
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
Looking for more information on truck accessories? Check out our guide on truck accessories in the product documents section.
- Includes Trailer Valet Drill Attachment (TVDA), wheel, footplate, and hand crank
- Patented Trailer Valet Gear System (12:16 Ratio)
- Patented gear material composition delivers maximum efficiency while reducing heat retention
- Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time
- 5,000 lb weight capacity
- Weather resistant shield protection and a protective sleeve to ensure a smooth glide every time
- Compatible with JX Wheel option (TVJXMW), sold separately
- Retracted height: 23in, Extended height: 37in, Total travel: 14in
- 5000lb (static), 5000lb (lift w/o drill), 1250lb (lift w/ drill)
- Clearance (from bottom of bracket to top of jack): Approximately 14in, center of mount point to top of jack is 11.5in
- Total Trailer Lift: 11.5in to 25.5in

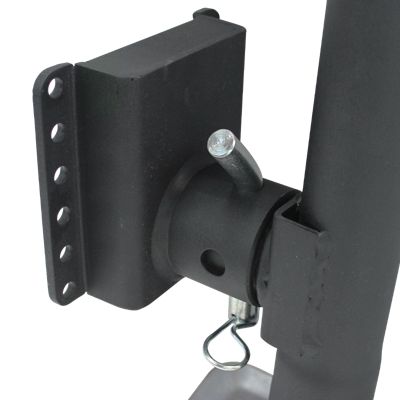

- Max Frame Size Fit: 4.75 in high, 3.75 in deep
- Use your own bolt for deeper frames - Uses M10 1.5
- Installation: Requires 8 in of clearance
- For frames from 4.75 inches to 5.75 inches use the mounting bracket option TVJLMB Sold Separately
- Static Capacity (with footplate): 5,000 lbs
- Static Capacity (with wheel): 1,200 lbs
- Lift Capacity: 1,200 lbs
- Lift Capacity w/ Drill: 800 lbs
