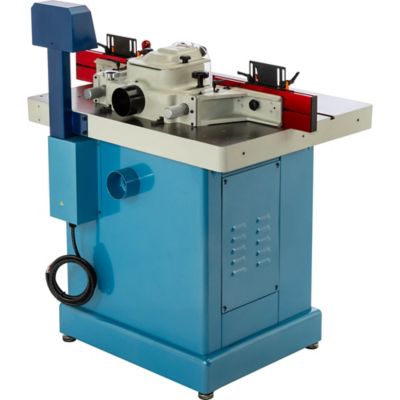

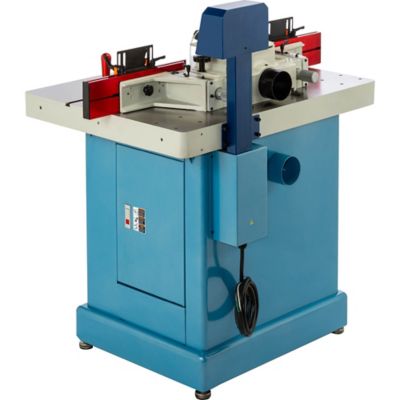

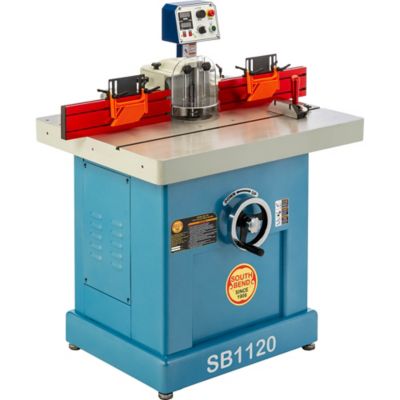

South Bend SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120

Item # 229418499

Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
$4,825.00
See Price at Checkout

Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

South Bend SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120

Item # 229418499

Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
Image showing  SB1120-5 HP 3Phase Variable-Speed Spindle, SB1120
$4825.00
See Price at Checkout

This item is available online only

Delivering to

37027


Neighbor's Club logo
Neighbor’s Club Members earn points with purchases.

Sign in or Join Now

Gain the advantage with industrial capacity and high-end features. The 5 HP spindle shapers will give you superb finishes with high-end features and precision-built quality only available from South Bend.

Each model has a digital readout for precise spindle speed and height adjustments, and a micro-adjustable fence with featherboards.

You'll get maximum support for large workpieces plus versatility with a solid 3-3/8" thick, 31-1/2" x 39-1/4" precision-ground cast-iron table that accepts cutters up to 7" in diameter.

Additional features include dual dust ports, an included miter gauge, a fully adjustable clear guard, and more.

Where quality and high output matter, choose South Bend for dependability, accuracy, and versatility—and watch your production soar!

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS: FEATURES:

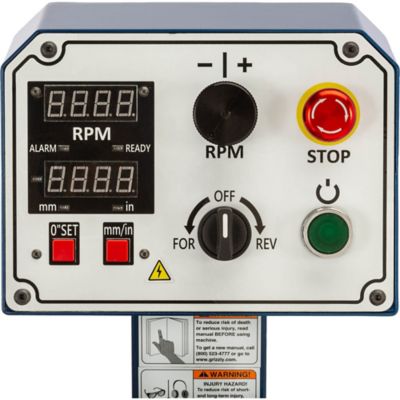

  • DRO for spindle RPM and height positioning
  • 4-3/4" tall anodized aluminum fence with featherboard attachments
  • Rack-and-pinion fence adjustment with 4" of travel
  • Micro-adjustment knobs for fence alignment
  • Power feeder attachment locations (power feeder not included)
  • Variable speed, from 5000–10,000 RPM
  • Fully adjustable clear guard
  • Dual 4" dust ports
  • Quick-release belt tensioner
  • US based customer service and technical support

    • Motor: 5 HP, 230V, 3-phase, 16.5A
    • Required power supply: 230V, 3-phase, minimum 20A circuit
    • Maximum cutter height: 5"
    • Maximum cutter diameter: 7"
    • Spindle diameters: 3/4", 1-1/4"
    • Spindle lengths: 3-7/8", 5-7/8"
    • Spindle capacities under nut: 3-1/2", 5-1/8"
    • Spindle speed: Variable, 5000-10,000 RPM
    • Spindle travel: 4"
    • Spindle openings: 2-1/2", 4-1/8", 5-3/4", 7"
    • Table counterbore: 8-1/4"dia., 3/16" depth
    • Table size: 31-1/2" x 39-1/4"
    • Floor-to-table height: 36-1/4"
    • Footprint: 25-1/2" x 31"
    • Dimensions: 39-1/2" W x 34" D x 51-1/2" H
    • Approx. shipping weight: 800 lbs.
