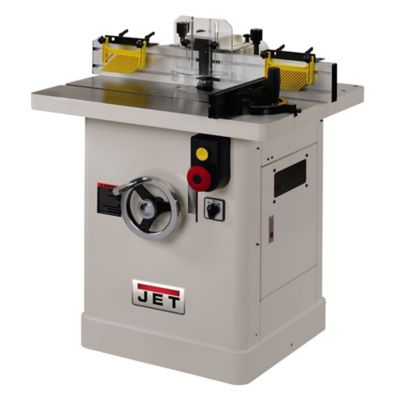

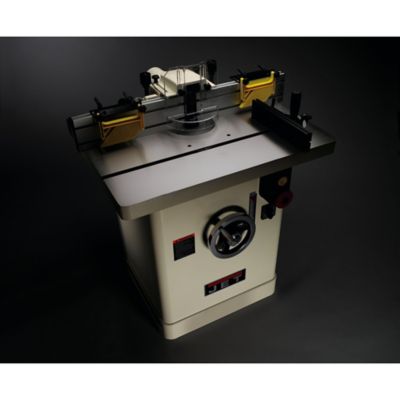

JET 3 HP 35 in. Wood Shaper
Online Only
Item # 1527319
Neighbor’s Club Members earn points with purchases.
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.
The JET 35-in. Wood Shaper brings the accuracy, durability and power to handle tough jobs with the versatility you need. This heavy-duty wood shaper features a powerful 3HP, 1Ph motor with magnetic controls that help to protect the JET wood shaper from power fluctuations that could damage the motor. The 4-speed step pulley drive features a quick-release lever that allows you to select the best speed and torque for different cutter diameters. The spindle is reversible, and receives maximum power transfer from the v-belt while the independently adjustable fences have micro-adjust controls for precise positioning. High-quality materials and construction along with a user-friendly array of features make this 35-in. wood shaper a high-value addition to any shop.5 year
For additional information on this product, please see the Product Documents section for all downloadable user manuals, installation guides, brochures and warranty statements.
- Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters
- JET 35-in. wood shaper features a powerful 3HP, 1Ph motor with magnetic controls that prevent power fluctuations
- Poly-V-belt transfers maximum power to the spindle
- Large, 26-3/4 in. x 32-1/4 in. precision ground cast iron table provides a durable work area
- Spindle height scale offers easy measurements
- Starting pins for irregular shaping

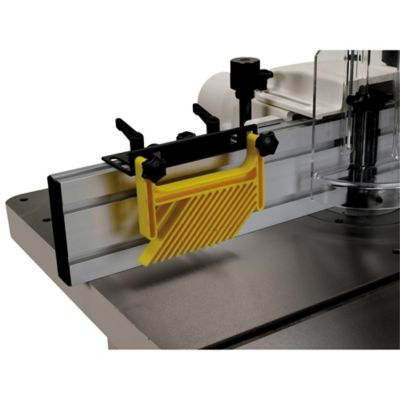

- Extruded aluminum fence comes with T-Slots and 2 feather board hold-downs
- Extra-large chrome handwheel is conveniently located for fast, easy and accurate spindle height adjustments
- Reversible spindle speeds for diverse shaping jobs
- Work area is pre-drilled for power feeder
- 4-in. dust port is built into the fence for a convenient hookup to any dust collection system
- Spindle lock for safe and easy cutter set up
| Brand | JET |
|---|---|
| Country of Origin | Imported |
| Collet Size | 1.25 in. Interchangeable Spindle, Router Bit Collet Size Optional 14 in., 12 in. |
| Cord Length | 6 ft. |
| Cut Through | Wood |
| Dust Collection Method | 4 in. dust port |
| Features | Four-speeds 4000, 6000, 8000, 10000 RPM let you select the best speed and torque for different cutter diameters |
| Maximum Speed | 10,000 RPM |
| Number of Speeds | 4 |
| Peak Horsepower | 3 HP |
| Plunge Depth | 4 in. |
| Power Type | Electric |
| Product Height | 42.375 in. |
| Product Length | 32.25 in. |
| Product Weight | 475 lb. |
| Product Width | 28.25 in. |
| Variable Speed | Variable Speed |
| Voltage | 230V |
| Manufacturer Part Number | 708323 |
