SCHULZ 5Hp 1Ph - 80G 20Cfm - 175Psi 230V
New Arrival
Online Only
SCHULZ 5Hp 1Ph - 80G 20Cfm - 175Psi 230V
Item # 2592571
$3,936.99
or
or
Add this item to unlock free delivery!
Neighbor’s Club Members earn points with purchases.
$3,936.99
or
or
$83/mo.† for 48 months at 0% APR or earn $196 in Rewards+ on this purchase.
Valid 8/24/2026 - 9/7/2026
Valid 8/24/2026 - 9/7/2026
Add this item to unlock free delivery!
This item is available online only
Delivery to
For delivery, this item requires a Big & Bulky handling fee.Learn more
Neighbor’s Club Members earn points with purchases.

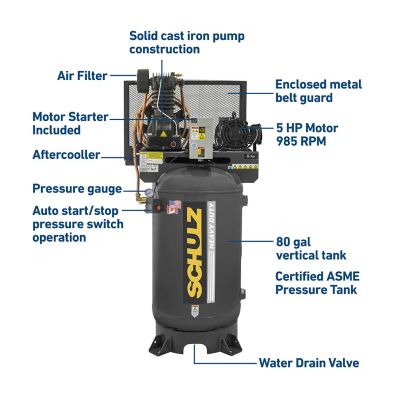

AIR COMPRESSOR - 5HP SINGLE PHASE - 80 GALLON TANK - 30CFM - 175 PSI 208/230V
- The in line L-series compressors are strong, durable equipment with distinguished performance. With vertical or horizontal tank design, these single and two stage products operate with low RPMs with a high-quality cast iron block. The double-supported crankshaft design provides lower vibration and longer bearing life, as well as the modern valve system (reed type) provides extended service life and excellent product efficiency. Mounted and wired magnetic starters, provide convenience and safety in operation with a ready to use system. The ASME certified safety valve and air tank as well as high efficiency motors make Heavy Duty L-Series compressors the best choice for your company.
| Brand | SCHULZ |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 30 CFM |
| Air Outlet Size | 34 in. |
| Amperage | 21 Amp |
| Compressor Horsepower | 5 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Tank Capacity | 80 gal |
| Compressor Voltage | 208V/230V |
| Connection Type | Cable |
| Drain System | Drain at the bottom of the tank |
| Drive Type | N/A |
| Engine Brand | WEG MOTOR |
| Features | The in line L-series compressors are strong, durable equipment with distinguished performance. With vertical or horizontal tank design, these single and two stage products operate with low RPMs with a high-quality cast iron block. |
| Maximum RPM | 610 rpm low pump rpm longer life , better performance |
| Phase | Single |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Gray |
| Primary Material | Cast Iron |
| Product Height | 79 in. |
| Product Length | 34 in. |
| Product Weight | 502 lb. |
| Product Width | 25 in. |
| Pump Life | 5,000 hours with oil change proper maintenance and |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Fill Time | 5 min. |
| Tank Style | Vertical |
| Warranty | 1 YEAR FOR THE PRODUCT AND 2 YEARS ON THE PUMP |
| Manufacturer Part Number | 932.9361-0 |
