SCHULZ 20 hp 3 Phase 120 gal. Horizontal 230/460 V
$6120.99
AIR COMPRESSOR - 20HP THREE PHASE - 120 GALLONS HORIZONTAL TANK - 208-230-460V

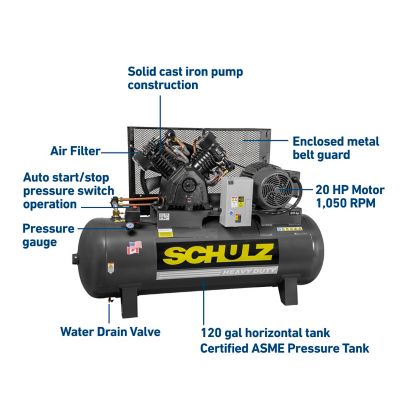

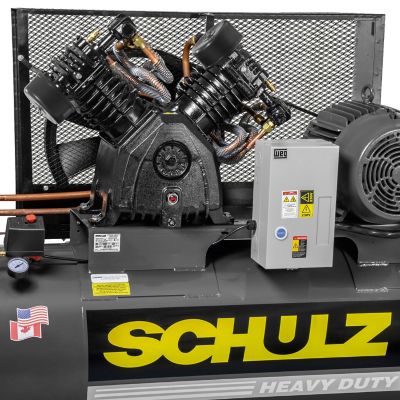

- V-series compressors are strong and durable equipment. Available in vertical or horizontal tank designs, they operate in low RPMs as two stage models while using high-quality cast iron blocks. The V-cylinder design has always been associated with the products high cooling, generating compressed air with lower temperatures, with increased efficiency. These two stage models are built with mounted and prewired magnetic starters for safe operation and a simplified, ready to use compressor. The ASME certified safety valve and air receiver and high efficiency motors make Heavy Duty V-Series compressors the best choice for your company.

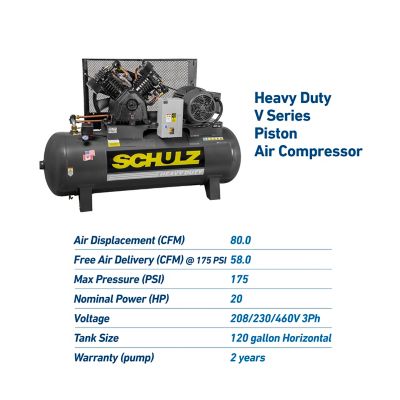

| Brand | SCHULZ |
|---|---|
| Country of Origin | Imported |
| Airflow Volume | 80 CFM |
| Air Outlet Size | 34 in. |
| Amperage | 50 Amp |
| Compressor Horsepower | 20 HP |
| Lubrication Type | Oil |
| Compressor Maximum PSI | 175 PSI |
| Compressor Operation | Automatic start/stop |
| Compressor Tank Capacity | 120 gal |
| Compressor Voltage | 208V/230V |
| Drain System | Drain at the |
| Drive Type | N/A |
| Features | WEG MOTORS |
| Number Of Power Speeds | Single |
| Power Type | Electric |
| Primary Color | Gray |
| Primary Material | Cast Iron |
| Product Height | 58 in. |
| Product Length | 78 in. |
| Product Weight | 844 lb. |
| Product Width | 26 in. |
| Pump Life | 5,000 hours with oil change proper maintenance and |
| Pump Material | Cast iron |
| Stage Type | Two-Stage |
| Tank Fill Time | 5 min. |
| Tank Style | Horizontal |
| Warranty | 1 YEAR WARRANTY ON THE PRODUCT AND 2 YEARS ON THE PUMP |
| Manufacturer Part Number | 934.7452-0 |
