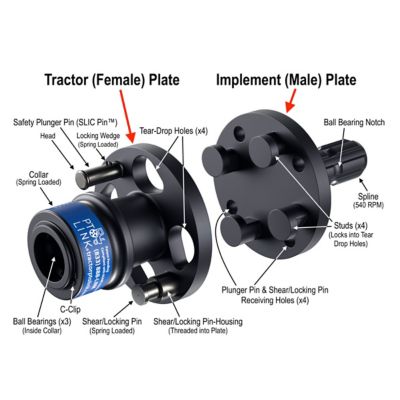

The PTO Link HD System is designed for all tractors rated from 35 HP to 130 HP (engine net) with Category 1 or 2 or pull-behind implements.PTO Link is the original, universal PTO quick-connect system consisting of two interconnecting steel couplers. Its patented Open-Plate design replaces the traditional spline-to-driveling connection with a visible interface that's both easy to see and reach. Now you can quickly and safely connect / disconnect implements at the tractor's PTO in just seconds! A complete PTO Link System requires both this Tractor (Female) Coupler and an Implement (Male) Coupler. For best results, every tractor should be equipped with a Tractor Coupler, and every implement should be equipped with an Implement Coupler.

Designed For:

Rear 6-spline 540 RPM PTO for tractors rated from 35 HP to 130 HP (engine net).

All Category 1 or 2 implements with a three-point hitch.

Pull-behind implements, including flex-wing rotary cutters (subject to implement operating manual specifications and guidelines).

Tractor owners who tend to operate equipment in a rough environment.

High Torque (> 650 ft. lbs.) scenarios or with heavy-duty implements (e.g., stump grinders, balers, augers, flail mowers, water pumps, large tillers) where reverse torque is common.

Safety and Operation:

The PTO Link System adds approximately 5 inches to the overall length of the implement driveline when fully installed. To avoid any possible damage or injury requires carefully measuring the driveline length for possible adjustments and reviewing all installation instructions and operational specs before operating the PTO Link.



The PTO Link HD System is NOT compatible or interchangeable with other PTO Link systems due to the specific design of the connecting components for each system.



As an essential safety precaution, be sure to turn off the tractor's engine during installation, shield any rotating parts, and do not wear any loose clothing that could become entangled and pulled into the machine. PTO safety is critical, and every precaution should be taken.



The PTO Link system is NOT an adapter. To comply with ASABE standards, do not use PTO Link in combination with PTO adapters.
